µ-Plate 384 Well Clear

£308.00

Key Features

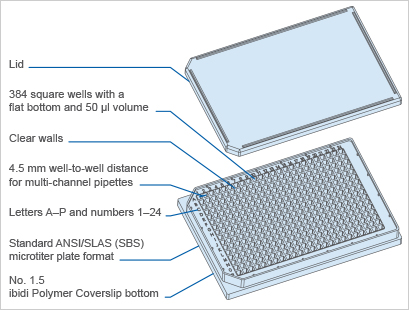

A clear 384 well microtiter plate with square wells and a flat, clear bottom for high throughput applications

  • Compatible with robotics, due to an ANSI/SLAS (SBS) standard format
  • Ideal for cell microscopy, due to the optically clear and flat bottom
  • Excellent inner well flatness and whole plate flatness
Clear
SKU: N/A Categories: ,
Special Requirements?

Description

Applications

  • High throughput screening (HTS) and imaging
  • Fluorescence-based imaging of living or fixed cells
  • Compound screenings (toxicology) with cell cultures
  • Large-scale transfection experiments
  • Fluorescence microscopy
  • Microtiter plate for robotics and lab automation

Specifications

Length / width 127.8 / 85.5 mm
Height with / without lid 17.2 / 15.0 mm
Well-to-well distance 4.5 mm
Well clearance 0.8 mm
Single well dimensions 3.45 x 3.45 mm²
Single well depth 12.7 mm
Volume per well 50 µl
Growth area per well 0.11 cm²
Coating area per well using 50 μl 0.8 cm²
Inner well flatness ± 5 µm
Whole plate flatness ± 25 µm
Bottom: ibidi Polymer Coverslip

Technical Features

  • Standard format, with the dimensions: 85.5 x 127.5 mm (meets ANSI/SLAS (SBS) Standards)
  • 384 quadratic wells with standard numbering
  • Compatible with lab automation equipment (e.g., robotics and plate readers)
  • Excellent inner well flatness and whole plate flatness
  • Suitable for fluorescence scanners
  • Non-cytotoxic and biocompatible
  • Compatible with all fixatives and staining solutions
  • No autofluorescence
  • Immersion oil compatible
  • Sterile, single packaging
