µ-Slide 8 Well High Glass Bottom

SKU: IB-80807 UNSPSC: Array Manufacturer Part No: Array Pack Size: Array
  • A cell culture chamber for observation of the sample through a glass coverslip bottom using high resolution microscopy
  • Brilliant cell imaging thanks to the low thickness variability of the coverslips’ glass
  • Cost-effective experiments using small numbers of cells and low volumes of reagents
  • Extra high individual walls to keep cross contamination between wells as low as possible
Special Requirements?

Build out your order then request a quote from your cart.

Bulk Discounts Available
Clear
See Variant info VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

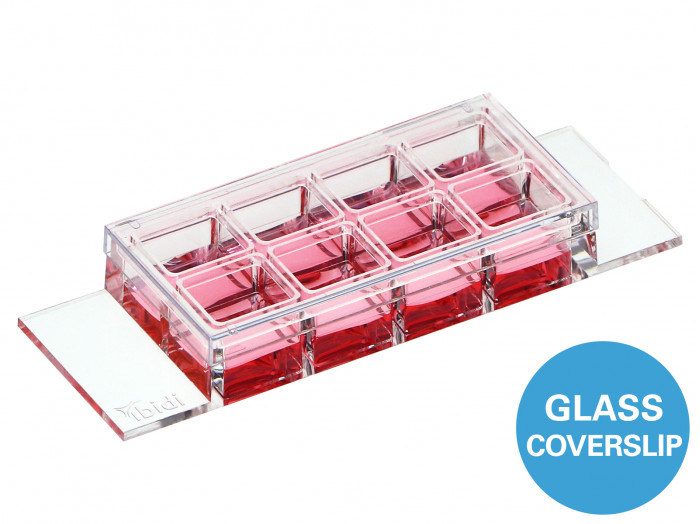

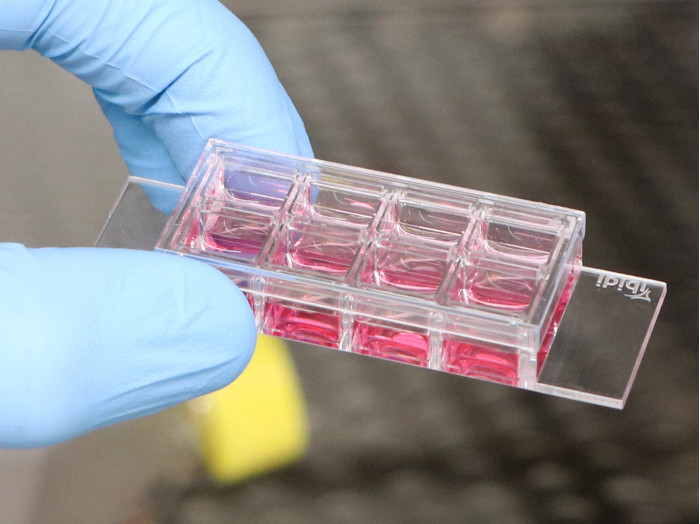

A chambered coverslip with 8 individual wells, high walls, and a #1.5H glass coverslip bottom, suitable for use in TIRF and single molecule applications

  • A cell culture chamber for observation of the sample through a glass coverslip bottom using high resolution microscopy
  • Brilliant cell imaging thanks to the low thickness variability of the coverslips’ glass
  • Cost-effective experiments using small numbers of cells and low volumes of reagents
  • Extra high individual walls to keep cross contamination between wells as low as possible

Applications

  • Cultivation and high-resolution microscopy of cells
  • TIRF and single molecule applications of living and fixed cells
  • Super-resolution microscopy
  • Immunofluorescence staining and fluorescence microscopy of living and fixed cells
  • Live cell imaging over extended time periods
  • Transfection assays
  • Differential interference contrast (DIC) microscopy when used with a DIC lid

Technical Features

  • Chambered coverslip with 8 independent wells and a non-removable glass coverslip-bottom
  • Bottom made from D 263 M Schott glass, No. 1.5H
    (170 +/- 5 µm)
  • May require coating to promote cell attachment

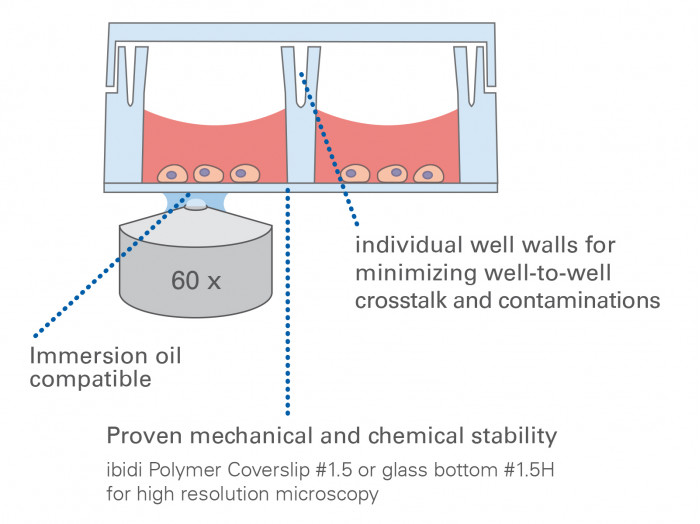

  • Individual well walls for minimizing well-to-well crosstalk and contaminations
  • Compatible with staining and fixation solutions
  • Also available as a µ-Slide 8 Well high with an ibidi Polymer Coverslip Bottom for superior cell growth
  • Also available as an adhesive version without a bottom:
    sticky-Slide 8 Well high
  • Additional version available with a 500 µm grid:
    µ-Slide 8 Well high Grid-500

Specifications Table

Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of wells 8
Dimensions of wells (w x l x h) 9.4 x 10.7 x 9.3 mm³
Volume per well 300 µl
Total height with/without lid 10.8/9.5 mm
Growth area per well 1.0 cm²
Coating area per well 2.2 cm²
Bottom: Glass coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm
Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of wells 8
Dimensions of wells (w x l x h) 9.4 x 10.7 x 9.3 mm³
Volume per well 300 µl
Total height with/without lid 10.8/9.5 mm
Growth area per well 1.0 cm²
Coating area per well 2.2 cm²
Bottom: Glass coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm
Variant
Pack/Size
Ordering
Price
Qty
slide-8-well-high-glass-bottom_1
µ-Slide 8 Well high Glass Bottom: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized
Array / Pack

SKU: IB-80807

Manufacturer Part No: Array

UNSPSC Code: Array

Price: £186.65 ex. VAT
slide-8-well-high-glass-bottom_1
µ-Slide 8 Well high Glass Bottom, Bulk Pack: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized
90 / Pack

SKU: IB-80807-90

Manufacturer Part No: 80807-90

UNSPSC Code: 41122600

Price: £973.50 ex. VAT
