µ-Slide 8 Well High

SKU: IB-80801 UNSPSC: 41122111 Manufacturer Part No: Array Pack Size: Array
  • All-in-one 8 well chamber slide for cost-effective experiments with small cell numbers and low reagent volumes
  • High-resolution imaging through No. 1.5 polymer coverslip bottom with the highest optical quality
  • Suitable for various microscopy techniques (e.g., DIC, widefield fluorescence, confocal microscopy, two-photon microscopy, FRAP, FRET, FLIM, and LSFM)
  • Extra high individual walls to keep cross contamination between wells as low as possible
Special Requirements?

Build out your order then request a quote from your cart.

Bulk Discounts Available
Clear
See Variant info VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

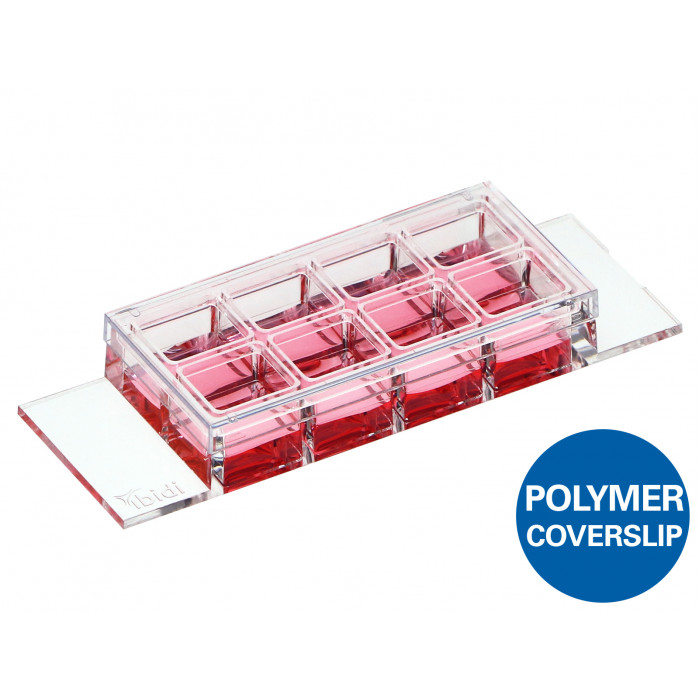

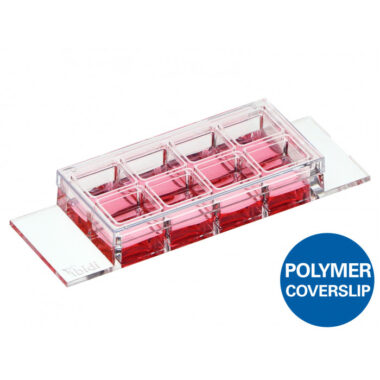

A chambered coverslip with 8 individual wells and high walls for cell culture, immunofluorescence, and high-end microscopy

  • All-in-one 8 well chamber slide for cost-effective experiments with small cell numbers and low reagent volumes
  • High-resolution imaging through No. 1.5 polymer coverslip bottom with the highest optical quality
  • Suitable for various microscopy techniques (e.g., DIC, widefield fluorescence, confocal microscopy, two-photon microscopy, FRAP, FRET, FLIM, and LSFM)
  • Extra high individual walls to keep cross contamination between wells as low as possible

Applications

  • Cultivation and high-resolution microscopy of cells
  • Immunofluorescence staining and fluorescence microscopy of living and fixed cells
  • Live cell imaging over extended time periods
  • Transfection assays
  • Differential interference contrast (DIC) microscopy when used with a DIC lid

Technical Features

  • Chambered coverslip with 8 independent wells and a non-removable polymer coverslip-bottom
  • ibiTreat (tissue culture-treated) surface for optimal cell adhesion
  • Imaging chamber slide with excellent optical quality for high-end microscopy

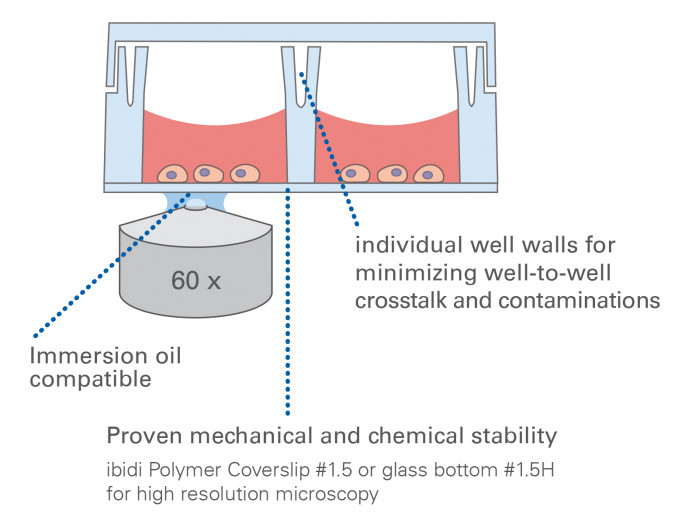

  • Individual well walls for minimizing well-to-well crosstalk and contaminations
  • Compatible with staining and fixation solutions
  • Biocompatible polymer material—no glue, no leaking
  • Also available as an adhesive version without a bottom:
    sticky-Slide 8 Well high
  • Also available with a Glass Coverslip Bottom:
    µ-Slide 8 Well high Glass Bottom for special microscopic applications
  • Additional version available with a 500 µm grid:
    µ-Slide 8 Well high Grid-500

Specifications Table

Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of wells 8
Dimensions of wells (w x l x h) 9.4 x 10.7 x 9.3 mm³
Volume per well 300 µl
Total height with/without lid 10.8/9.5 mm
Growth area per well 1.0 cm²
Coating area per well 2.2 cm²
Bottom: ibidi Polymer Coverslip
Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of wells 8
Dimensions of wells (w x l x h) 9.4 x 10.7 x 9.3 mm³
Volume per well 300 µl
Total height with/without lid 10.8/9.5 mm
Growth area per well 1.0 cm²
Coating area per well 2.2 cm²
Bottom: ibidi Polymer Coverslip
Variant
Pack/Size
Ordering
Price
Qty
slide-8-well-high
µ-Slide 8 Well high Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
Array / Pack

SKU: IB-80801

Manufacturer Part No: Array

UNSPSC Code: 41122111

Price: £126.48 ex. VAT
slide-8-well-high
µ-Slide 8 Well high ibiTreat, Bulk Pack: #1.5 polymer coverslip, tissue culture treated, sterilized
90 / Pack

SKU: IB-80806-90

Manufacturer Part No: 80806-90

UNSPSC Code: 41122111

Price: £631.38 ex. VAT
slide-8-well-high
µ-Slide 8 Well high Poly-L-Lysine: #1.5 polymer coverslip, sterilized
15 / Pack

SKU: IB-80804

Manufacturer Part No: 80804

UNSPSC Code: 41122111

Price: £333.04 ex. VAT
slide-8-well-high
µ-Slide 8 Well high ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack

SKU: IB-80806

Manufacturer Part No: 80806

UNSPSC Code: 41122111

Price: £126.48 ex. VAT
slide-8-well-high
µ-Slide 8 Well high Collagen IV: #1.5 polymer coverslip, sterilized
15 / Pack

SKU: IB-80802

Manufacturer Part No: 80802

UNSPSC Code: 41122111

Price: £333.04 ex. VAT
