μ-Slide I Luer Glass Bottom

£155.00

Key Features

  • Large area of uniform shear stress
  • Easy connection using Luer adapters
  • Homogeneous cell distribution with defined optical pathway
  • Super-resolution and TIRF possible due to the #1.5H glass substrate
Clear
LUERGLASS
SKU: LUERGLASS Categories: ,
Special Requirements?

Description

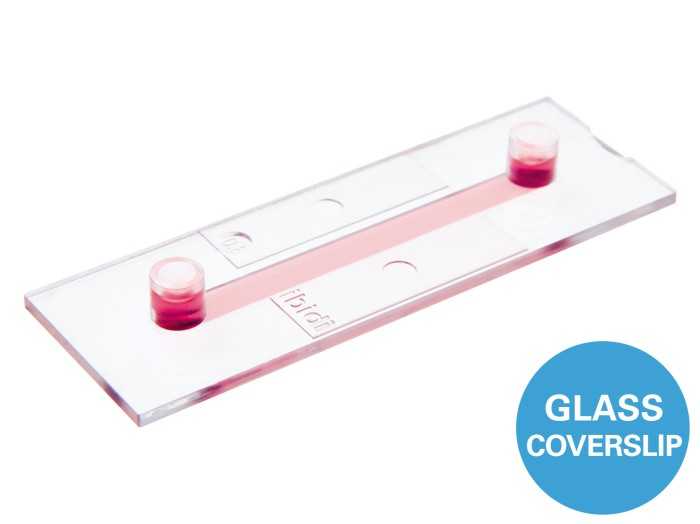

Channel slides with a #1.5H glass bottom for flow applications; different heights and volumes available

Applications

  • Adherent cells under flow conditions
  • Cell culture (static or stop-flow)
  • Simulation of blood vessels with endothelial cells
  • High-resolution microscopy of living and fixed cells
  • TIRF and super-resolution microscopy

Technical Features

  • Standard format with thin coverslip bottom made from D 263 M Schott glass #1.5H (170 µm +/- 5 µm) for low or high magnification microscopy
  • Large observation area for microscopy
  • Defined shear stress and shear rate levels

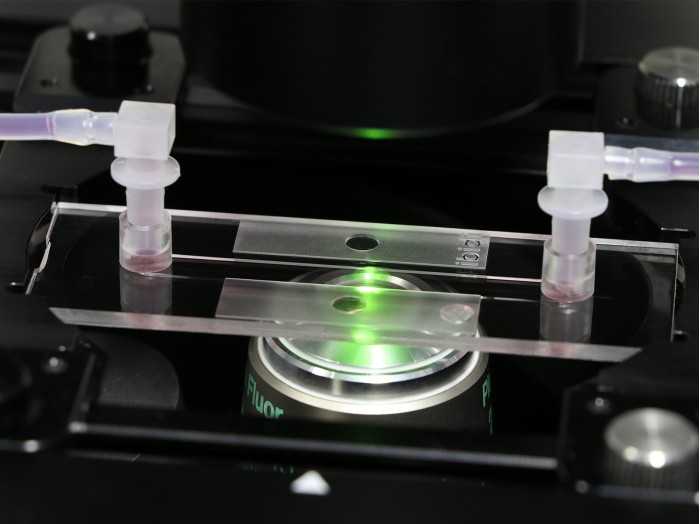

  • Easy connection to tubes and pumps using Luer adapters
  • Fully compatible with the ibidi Pump System
  • May require coating to promote cell attachment
  • Also available as a µ-Slide I Luer with an ibidi Polymer Coverslip Bottom for superior cell growth

Specifications

Outer dimensions25.5 x 75.5 mm² (w x l)
Channel length50 mm
Channel width5 mm
AdaptersFemale Luer
Volume per reservoir60 μl
Growth area2.5 cm2
Bottom: Glass coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm
