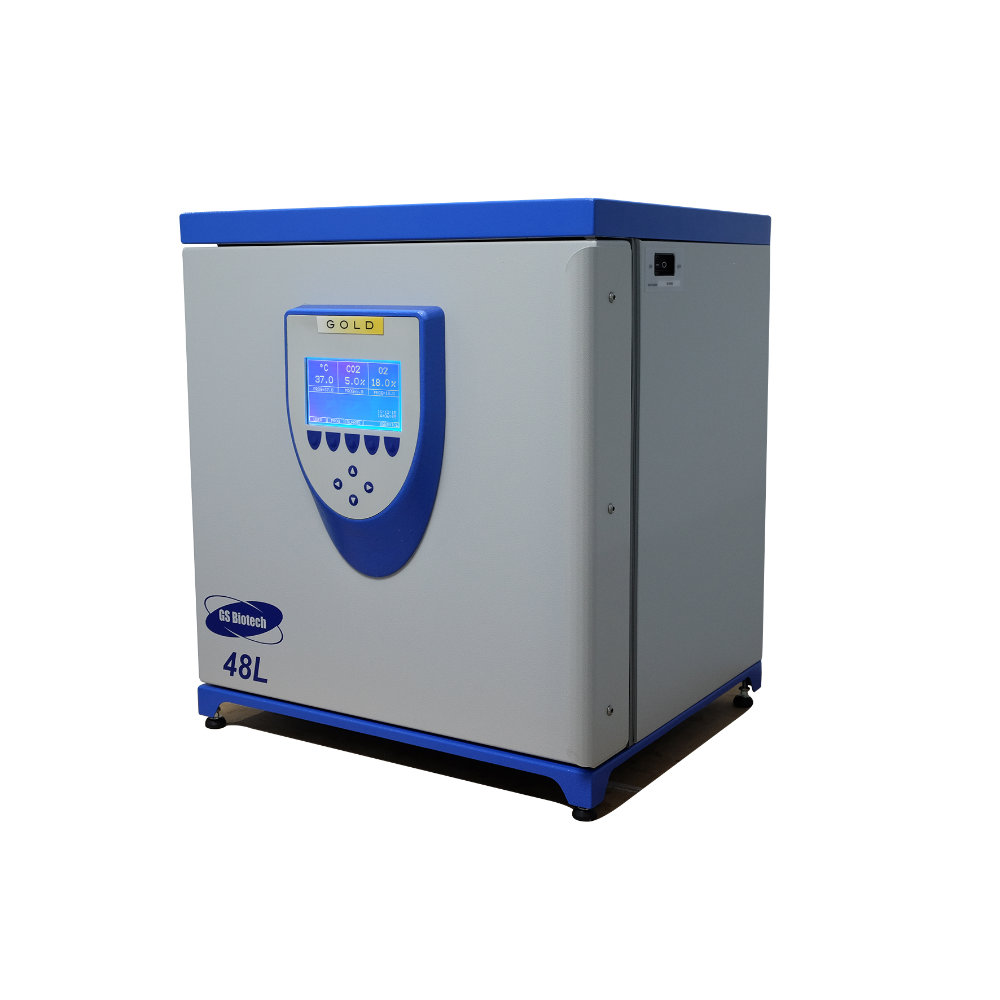

48L CO2 Incubator

SKU: GSB-48G-230 UNSPSC: 41104403 Manufacturer Part No: 48G-230 Pack Size: 1
  • Seamless chamber, with rounded interior corners makes cleaning easy.
  • Sealed inner glass door allows chamber viewing.
  • CO2 range programmable from 0.2 to 20 %.
  • Temperature range programmable from 4 °C above ambient to 50 °C.
  • Large, easy to read LCD display with LED backlight.
  • Removable, seamless, stainless steel humidity reservoir.
  • 25mm access port for cable pass-through etc.
  • HEPA filtration for all incoming gasses.
  • Large range of options allows you to configure each incubator for each task.
  • 3 Year Warranty (extendable).
Special Requirements?

Build out your order then request a quote from your cart.

Price: £4,181.67 ex. VAT

VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

The range is designed around a scalable architecture and offers the following features as standard:

  • Optimum chamber environment, profiled heating creates gentle circulation – no fan or HEPA filter.
  • Seamless chamber, with rounded interior corners makes cleaning easy.
  • Removable shelves are non-tip.

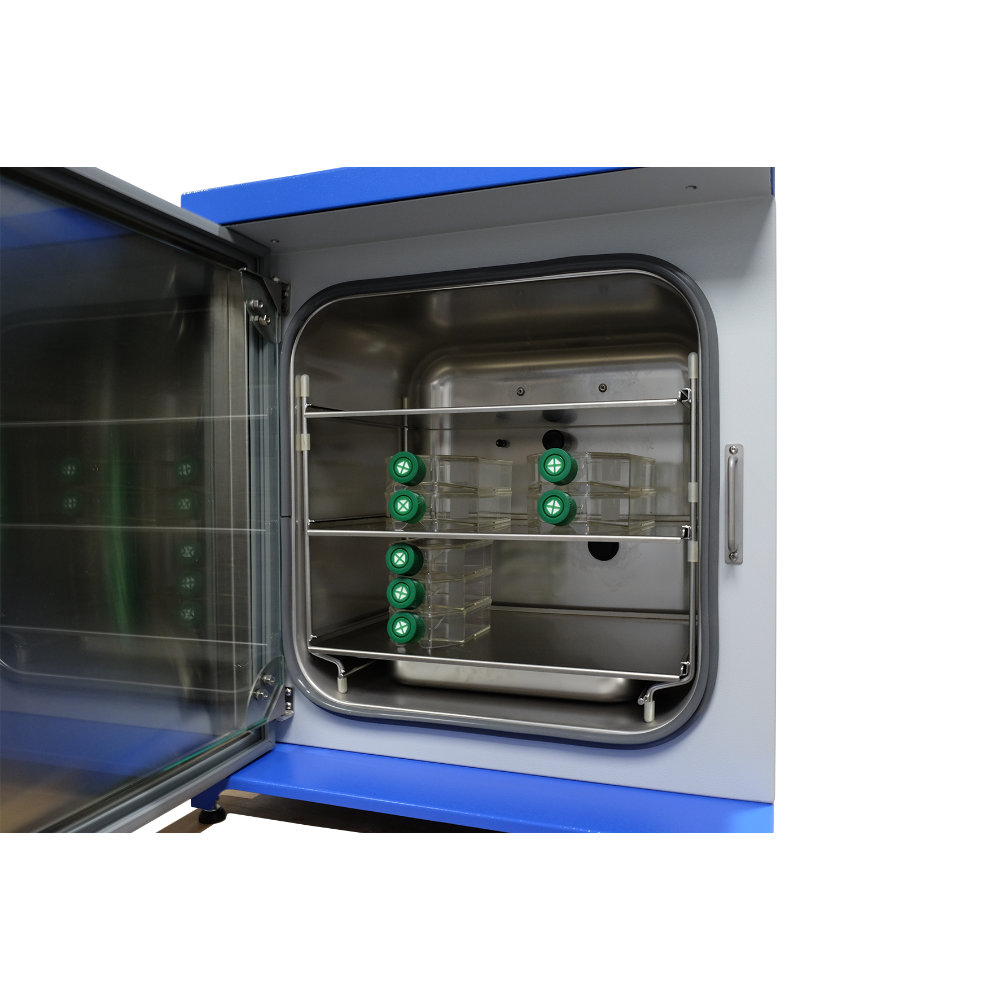

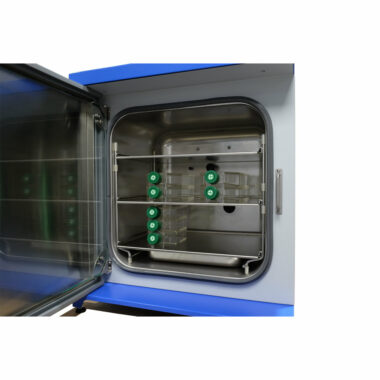

  • Sealed inner glass door allows chamber viewing.
  • CO2 range programmable from 0.2 to 20 %.
  • Temperature range programmable from 4°C above ambient to 50°C.
  • Infrared CO2 Sensor, with auto self-referencing function.
  • Large, easy to read LCD display with LED backlight.

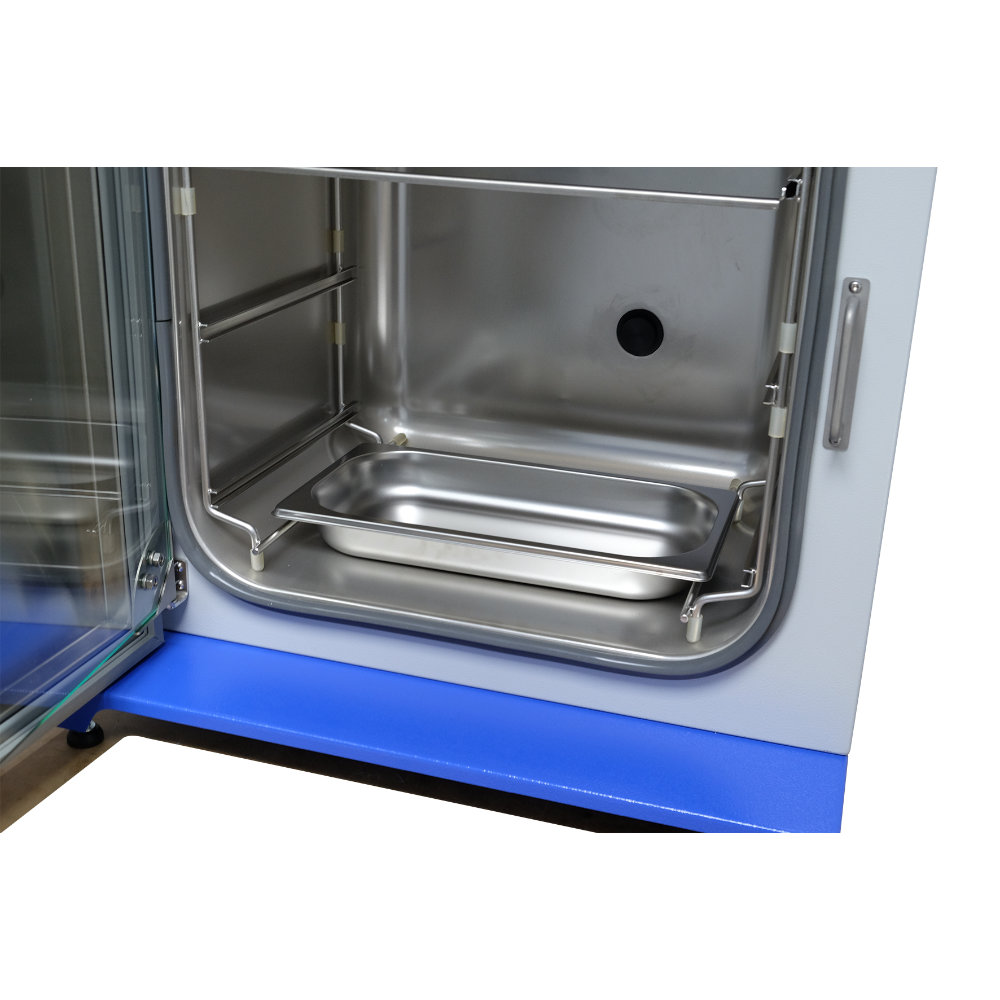

  • Removable, seamless, stainless steel humidity reservoir.
  • 25mm access port for cable pass-through etc.
  • HEPA filtration for all incoming gasses.
  • Large range of options allows you to configure each incubator for each task.
  • Optional data capture and reporting for QA and verification purposes.
  • 3 Year Warranty (extendable).

Control System Safety Features Include:

  • Independent over temperature cut-out.
  • Calibration and programmed data internally backed up to guard against loss.

High Temperature Decontamination Cycle

This option takes the internal temperature to 120°C and maintains this temperature for 4hrs before natural cooling to allow normal function.

2-Inner Door Option

2 Inner doors allow chamber conditions to be more readily maintained when frequent entry is required to the chamber.

Oxygen Control

2 Oxygen control options are available: 1-19% & 0.1-19%

Both control systems consist of nitrogen injection to accurately control the desired below ambient Oxygen level.

Humidity Tray Warning

An optical level sensor is an option that monitors humidity tray water level, this consists of an audible alarm. The detection level provides in excess of 2 days normal operation loss so as to accommodate long weekend periods of non attendance.





Range 4°C above ambient to 50°C Humidity Up to 95% @ 37°C
Control ± 0.1°C Solid Shelves 3 Shelves
Stability ± 0.1°C Dimensions 378(W) x 281(D)mm
Uniformity ± 0.3°C Chamber 400(W) x 301(D) x 400(H)mm
Range 0.2% - 20% External 529(W) x 442(D) x 589(H)
Control ± 0.1°C Crated 654(W) x 617(D) x 824(H)mm
Stability ± 0.1°C Unit Weight 38kg
Uniformity ± 0.2°C Crated Weight 60kg
Recovery Rate > 0.7% per minute Voltage 220/240V 50/60Hz
Connection 6mm tubing Power 500W (STD)
Gas Pressure 0.35 BAR (5PSI)   1000W (HT)
Tray Capacity 0.8 Litres Hold Energy < 0.1kWh @ 37°C
Variant
Pack/Size
Ordering
Price
Qty

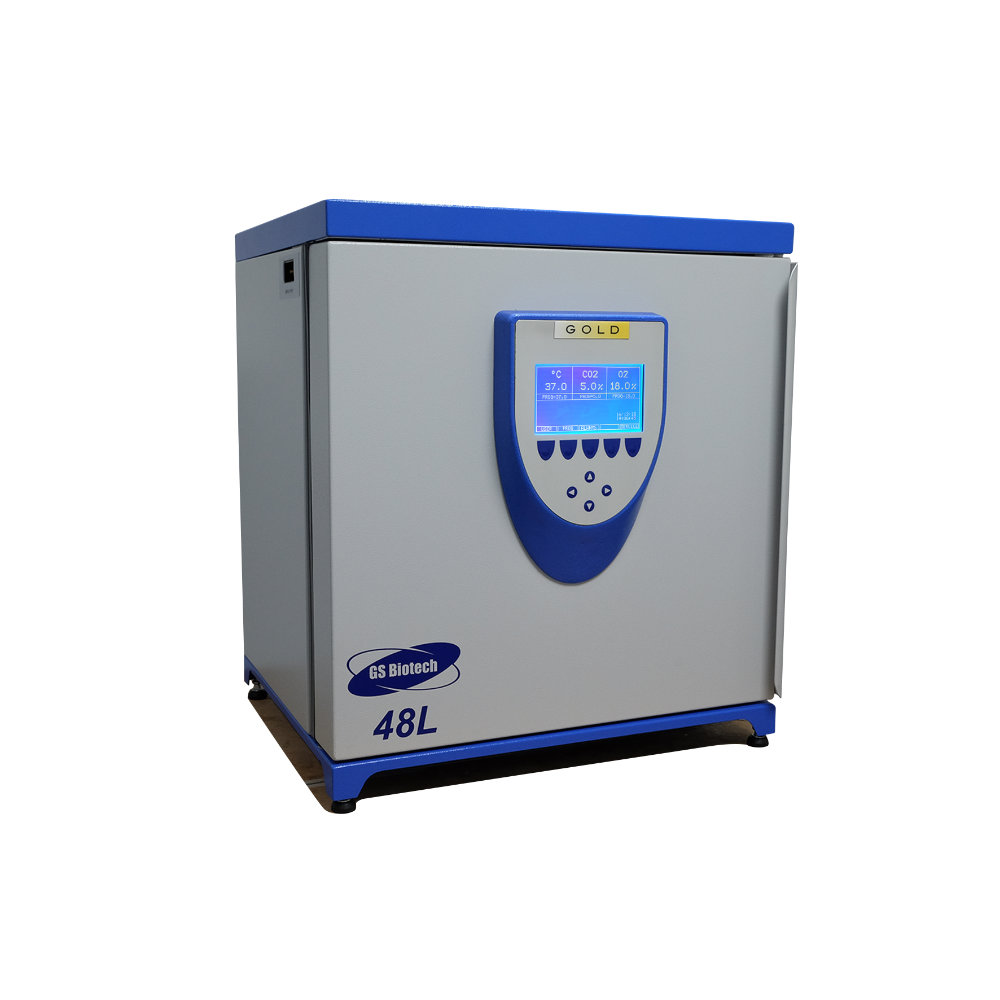

48L-Front-Left.WEB
48L CO2 Incubator with glass door, 25mm access port, data logging and RS232
1 / Each

SKU: GSB-48G-230

Manufacturer Part No: 48G-230

UNSPSC Code: 41104403

Price: £4,181.67 ex. VAT
