Biometra TAdvanced

Key Features

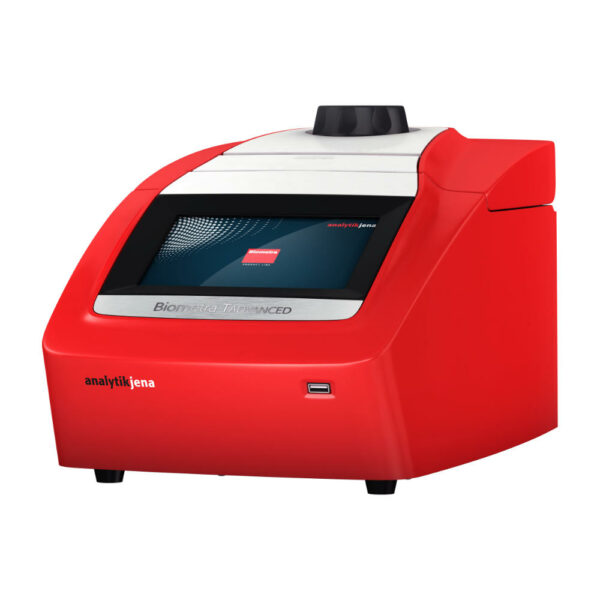

Biometra TAdvanced – the high-performance thermal cycler for DNA amplification by PCR

  • Twelve different sample blocks: including a 96-well silver block as high-end variant
  • Powerful control electronics: Now even an aluminum block reaches superior heating and cooling rates as usually only achieved in instruments with silver block
  • Optional with gradient: simple optimization of new primer pairs

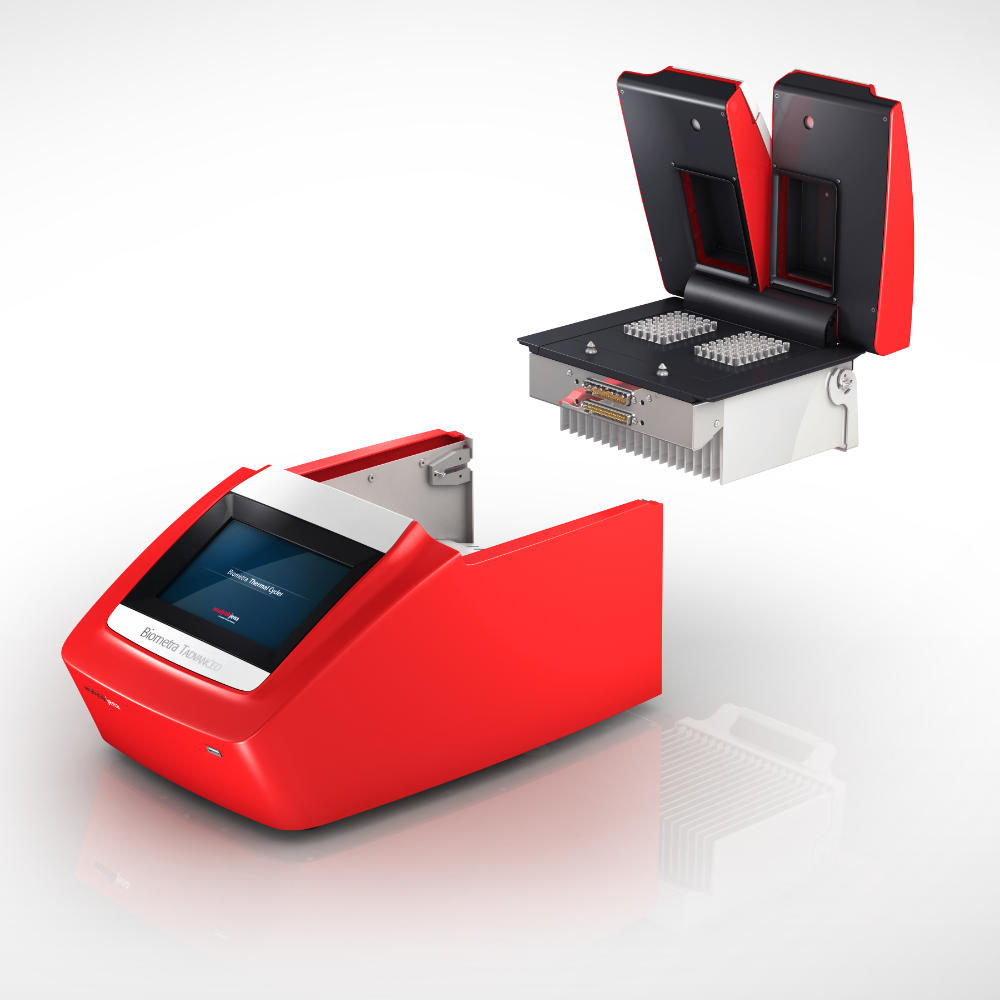

  • Quick Block Exchange System: easy, fast exchange of sample blocks
  • Intuitive software: graphical programming and Easy Spreasheet Programming
  • Comfortable 7 inch color touch display

    Biometra
    TAdvanced – No Compromises in Technology
SKU: Biometra TAdvanced Categories: ,
Special Requirements?

Description

Product Info

The Biometra thermal cycler for highest demands

High-Speed Thermal Block
The Biometra TAdvanced Thermal Cycler is available with different block formats. The Quick Block Exchange technology allows an easy exchange of block modules in a few seconds. All blocks are made of aluminum and offer high ramp rates for fast protocol running times. Additionally, to achieve ultimate performance, a 96 well block made of silver is available. Due to its excellent heat conductivity, silver equilibrates extremely quickly, thus providing maximum speed and temperature uniformity. To protect the valuable silver blocks against corrosion, the block surfaces are gold plated. By the rubber sealing at the lid an encapsulated space is formed when the lid is closed. The closed room serves to improve the temperature uniformity of the sample block and avoids formation of condensed water at the final PCR cooling step. Furthermore all blocks are perfectly sealed to prevent condensed water from penetrating the Peltier elements underneath the sample block and other parts of the electronics. The Peltier elements are protected by the perfect sealings. This guarantees a longer intrument lifetime.

High-Performance Smart Lid
The Biometra TAdvanced heated lid has been optimized to heat twice as fast as with older models and thus helps to shorten protocol run times. Moreover the heated lid serves for two additional essential functions: It prevents the formation of condensed water at the reaction tube portion located above the block surface level and it ensures reliable contact between samples and thermal block by applying constant pressure. By the integrated clutch mechanism the pressure applied to the reaction tubes is always same regardless of the plastic ware height. The combination of the heated lid shape and the reliable contact pressure ensure an even temperature distribution between samples thus significantly improves the temperature uniformity.
With one press on the front button, the lid gently swings open and arrests in its end position. By this mechanism the lid cannot fall down and the heated lid is out of the radius of action when the user is inserting tubes or plates. Thus the risk of injury by violent pressure or the risk of burn by hot surfaces is prevented.

State of the Art Touchscreen (Display)
The Biometra TAdvanced Thermal Cycler features a 7“ state of the art color touchscreen user interface. The touchscreen is built-in at a flat angle to ensure reflection-free viewing and ergonomic programming. For programming of PCR protocols, the software incorporates Biometras proven spreadsheet philosophy and additionally a graphical programming mode. One touch leads from the spreadsheet to the alternative graphical programming mode. This makes the creation of new or editing existing of programs fast and easy.

User specific quick start function

Many other thermal cyclers offer a so called “latest program list”. In the latest program list a certain number of PCR programs is collected and offered for quick start. The list is typically ordered only by date and the user has to search for the desired program. In contrast the Biometra TAdvanced software creates a user specific list and only the latest programs started by the currently logged-in user are offered for quick start. Even a lab member does not use the instrument for a longer time the information on the latest programs started by this user will not get lost.
For maximum convenience the Biometra TAdvanced software features additionally features the program preview. Before start of a program the protocol steps are summarized in a clearly arranged table by the program preview tool. The program preview therefore provides a comprehensive overview on the protocol structure without the need to access programming screens. The program preview is also available before quick start of programs.

Linear Gradient Tool for maximum convenience
For optimizing new primer pairs in a single run the Biometra TAdvanced optionally can be equipped with gradient function. Finding the best primer annealing temperature is crucial for the specificity and efficiency of PCR reactions. Often optimization of experiments is conducted only limited leading to unspecific byproducts or reduced PCR sensitivity. By using the gradient function new primer pairs with unknown annealing temperatures can be tested quickly and optimized in very short time.
For maximum convenience the Biometra TAdvanced offers the Linear Gradient Tool. For most other instruments the temperature difference from row to row or from column to column in a gradient step varies across the sample block. The Biometra TAdvanced Linear Gradient Tool offers to program gradient steps with a defined temperature increment between the columns or rows. The Linear Gradient Tool option allows the comfortable creation of gradient steps and the best annealing temperature can be easily transformed to a non-gradient protocol.

Security for regulated enviroments
The software can manage up to 30 user accounts. By default three different user-levels are available: Administrator, user with generic rights and user with limited rights. However, in a comfortable menu the administrator can configure the settings for each user individually by activating or inactivating single rights. By the user administration tool in combination with the password protection of user accounts access to the instrument can be limited to authorized persons and unwanted modifications to the system settings and PCR protocols prevented.
With each system start the Biometra TAdvanced performs an initial self-test and additionally the software offers an extended self-test that can be initiated by the user. The results of the extended self-test becomes are summarized in a protocol and are stored by the instrument. Additionally to the self-test functions the instruments creates and stores run-logfiles for each single run. For long-term storage run-logfiles and extended self-test protocols can be exported as proprietary file format.

  • Fastest Ramping, highest Accuracy, Block/Well Control:
    Superior sample block temperature control
  • Whisper Quiet: Low noise emission of max. 45 dB
  • High Performance Smart Lid: Defined pressure control for
    highly reproducible results
  • Quick Block Exchange: Easy exchange of block modules thanks
    to optional QBE technology
  • ƒƒLinear Gradient Tool: For easy gradient programming using the
    primer annealing temperature
  • Protocol Wizard: Simple protocol creation by just a few inputs
  • Advanced User Management: Individual rights settings for each
    user

Technical Data

Instrument Biometra TAdvanced 96 Biometra TAdvanced 96 S
Capacity 96 x tubes 0.2 ml 96 well microplates 12 x strips 8 well 96 x tubes 0.2 ml 96 well microplates
Block Aluminum Silver
Block coating Special Alloy Gold
Block Exchange Quick-X-Change Quick-X-Change
Block Exchange time less than 10s less than 10s
Max. heating rate* 6,0 °C/sec 8.0 °C/sec.
Max. cooling rate* 4,0 °C/sec 5.5 °C/sec.
Avg. Heating Rate* 5,5 °C/sec 7.0 °C/sec.
Avg. Cooling Rate* 3,5 °C/sec 4.5 °C/sec.
Max./min. Gradient span1 30 °C/0.1 °C 40 °C/0.1 °C
Temperature Uniformity 95 °C  ± 0.60 °C after 15 s 70 °C  ± 0.30 °C after 15 s 55 °C  ± 0.20 °C after 15 s 95 °C  ± 0.50 °C after 15 s 70 °C  ± 0.25 °C after 15 s 55 °C  ± 0.15 °C after 15 s
Gradient Temperature Range1 20 °C to 99 °C 4 °C to 99 °C
Temperature Range 3 °C to 99 °C
Control Accuracy +/- 0.1 °C
Software User specific quick start of the last five programs, program preview prior to start, toggle between spreadsheet and graphical programming mode, Linear Gradient Tool1, generate service info files (SINF),extended self-test, adjustable ramp rates, view gradient temperature graph1, PC control via Ethernet, comprehensive user administration tool with individual rights settings, Protocol Wizard
Display 7‘‘ Color Touchscreen
Auto restart after power failure Yes
High Performance Smart Lid (HPSL) Technology Yes
Lid Temperature Range 30 °C to 110 °C
Power consumption 850 Watt
Power Supply 100, 115, 230 Volt, 50-60 Hz
Noise emission Very low, max. 45 dB
Interfaces2 USB A, Ethernet
Working conditions 15 °C to 35 °C, 70 % air humidity, max. 2000 m NN
Dimensions (W x D x H) 277 mm x 457 mm x 264 mm
Dimensions (W x D x H) with lid opened 277 mm x 457 mm x 414 mm
Weight 15 kg
* measured inside the block
1 Only for model type “G” featuring gradient function
2 The network cable must be at least performance class Cat 5e and the cable configuration has to be STP
Instrument Biometra TAdvanced 60 Biometra TAdvanced 384
Capacity 60 tubes 0.5 ml 384 well microplates
Block Aluminum Aluminum
Block coating Special Alloy Special Alloy
Block Exchange Quick-X-Change Quick-X-Change
Block Exchange time less than 10s less than 10s
Max. heating rate* 6.0 °C/sec 4.0 °C/sec
Max. cooling rate* 4.0 °C/sec 2.0 °C/sec
Avg. Heating Rate* 5.5 °C/sec 3.8 °C/sec
Avg. Cooling Rate* 3.0 °C/sec 1.7 °C/sec
Max./min. Gradient span1 30 °C 24°C
Temperature Uniformity 95 °C  ± 0.60 °C after 15s 70 °C  ± 0.30 °C after 15s 55 °C  ± 0.20 °C after 15s 95 °C  ± 0.50 °C after 15s 70 °C  ±0.25 °C after 15s 55 °C  ± 0.15 °C after 15s
Gradient Temperature Range1 20 °C to 99 °C 20 °C to 99 °C
Temperature Range 3 °C to 99 °C
Control Accuracy +/- 0.1 °C
Software User specific quick start of the last five programs, program preview prior to start, toggle between spreadsheet and graphical programming mode, Linear Gradient Tool1, generate service info files (SINF),extended self-test, adjustable ramp rates, view gradient temperature graph1, PC control via Ethernet, comprehensive user administration tool with individual rights settings, Protocol Wizard
Display 7‘‘ Color Touchscreen
Auto restart after power failure Yes
High Performance Smart Lid (HPSL) Technology Yes
Lid Temperature Range 30 °C to 110 °C
Power consumption 850 Watt
Power Supply 100, 115, 230 Volt, 50-60 Hz
Noise emission Very low, max. 45 dB
Interfaces2 USB A, Ethernet
Working conditions 15 °C to 35 °C, 70 % air humidity, max. 2000 m NN
Dimensions (W x D x H) 277 mm x 457 mm x 264 mm
Dimensions (W x D x H) with lid opened 277 mm x 457 mm x 414 mm
Weight 15 kg
* measured inside the block
1 Only for model type “G” featuring gradient function
2 The network cable must be at least performance class Cat 5e and the cable configuration has to be STP

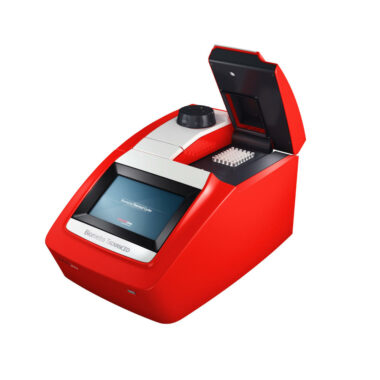

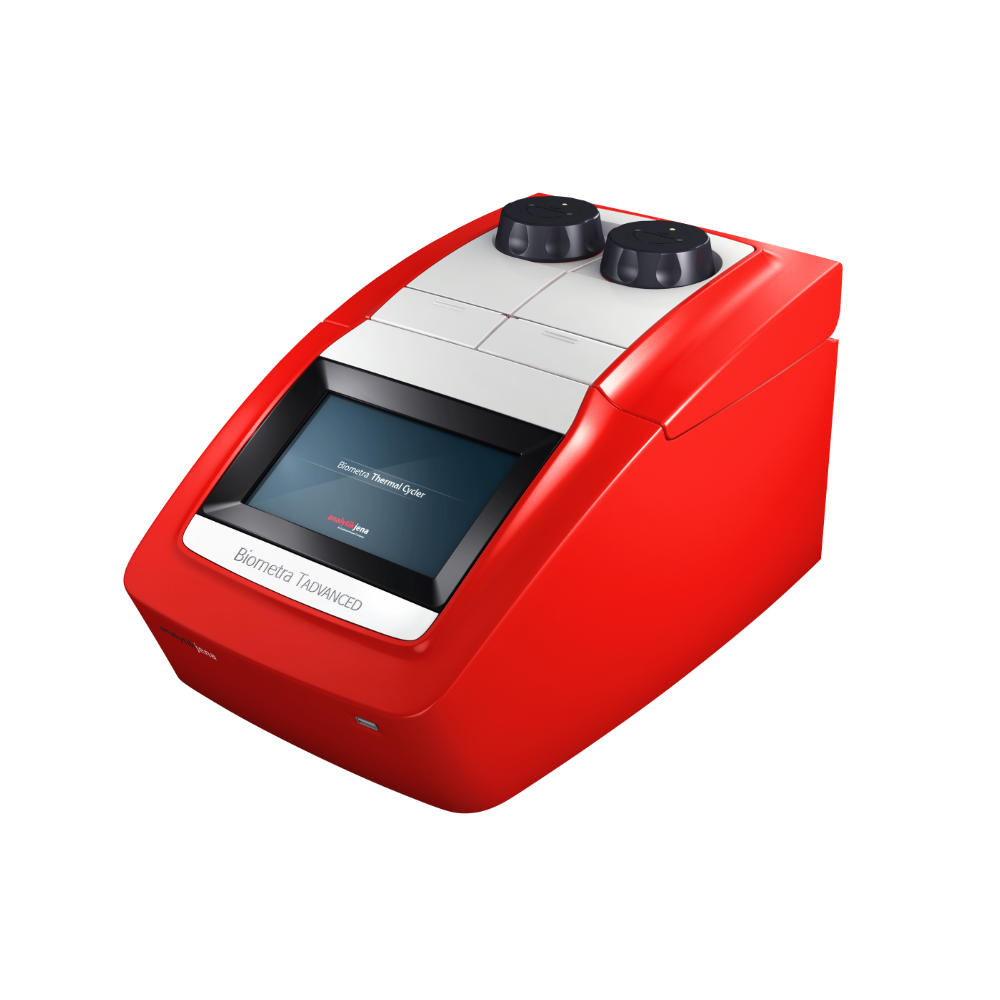

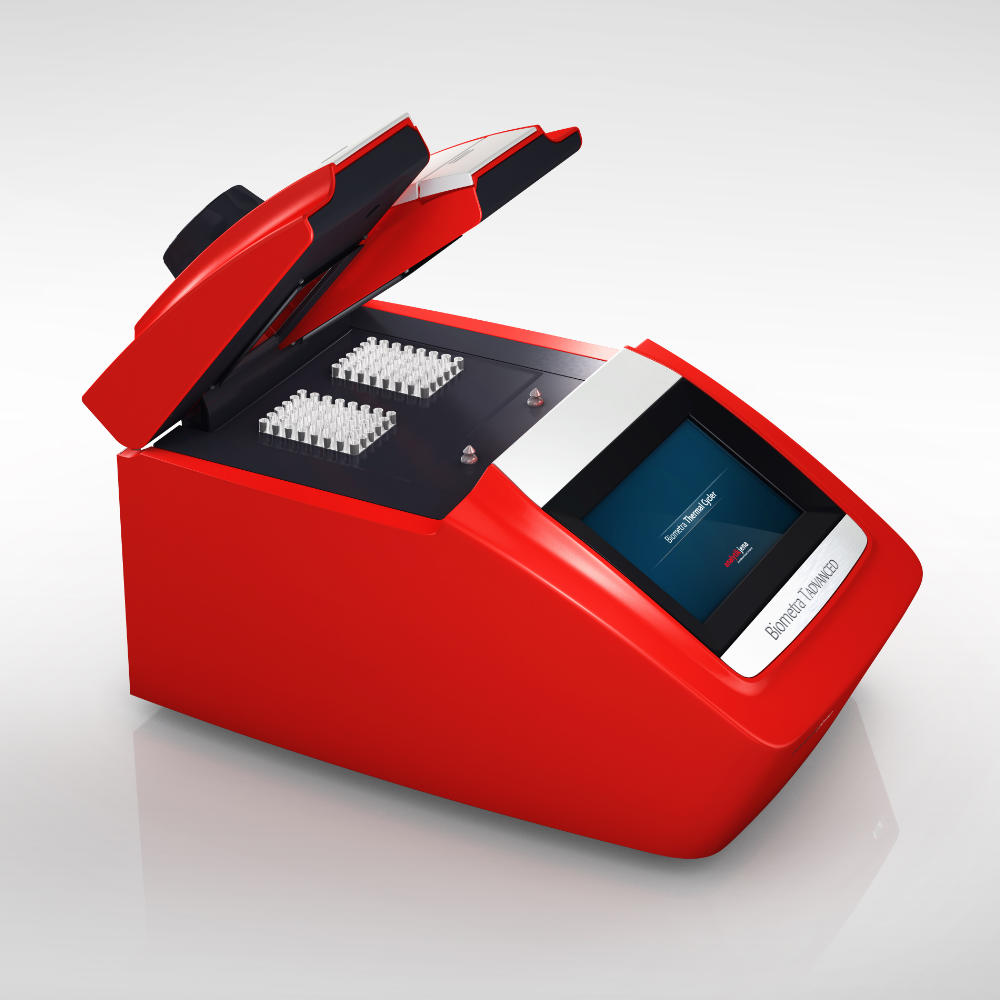

Instrument Biometra TAdvanced Twin 48/48G Biometra TAdvanced Twin 30 Biometra TAdvanced Twin combi
Capacity 2 x 48 x 0.2 ml tubes/ 2 x 48- well microtiter plate /2 x 6 x 8-well strips, 0.2 ml 2 x 30 x 0.5 ml tubes 2 2 x 48 x 0.2 ml tubes/ 2 x 6 x 8-well strips, 0.2 ml/2 x 48-well microtiter plate/ 2 x 18 x 0.5 ml tube
Block Aluminum, special alloy Aluminum, special alloy Aluminum, special alloy
Max. heating rate1 5.2 °C/s 4.2 °C/s 3.1 °C/s
Max./min. gradient2 20 °C/0.1 °C - -
Gradient temperature range2 20 °C to 99 °C
Temperature uniformity at 55 °C after 15 s ± 0.20 °C ± 0.20 °C ± 0.20 °C
Temperature range 3 °C to 99 °C 3 °C to 99 °C 3 °C to 99 °C
Control accuracy ± 0.1 °C ± 0.1 °C ± 0.1 °C
Lid temperature range 30 °C to 110 °C 30 °C to 110 °C 30 °C to 110 °C
Program memory 350 programs in up to 30 user directories 350 programs in up to 30 user directories 350 programs in up to 30 user directories
Dimensions (W x D x H, mm) 277 x 457 x 264 277 x 457 x 264 277 x 457 x 264
G = with gradient function 1 measured within sample block 2 applies only to cycler models with gradient function For more technical details please refer to the corresponding Technical Data sheets.

Order Info

Instruments
Order number Description Capacity
846-x-070-211 Biometra TAdvanced 96 96 well
0.2 ml tubes, plates,
strips
846-x-070-201 Biometra TAdvanced 96 G 96 well
0.2 ml tubes, plates,
strips
846-x-070-241 Biometra TAdvanced 96 SG 96 well
0.2 ml tubes, plates,
strips
846-x-070-251 Biometra TAdvanced 96 S 96 well
0.2 ml tubes, plates,
strips
846-x-070-210 Biometra TAdvanced 60 60 well
0.5 ml tubes
846-x-070-200 Biometra TAdvanced 60 G 60 well
0.5 ml tubes
846-x-070-224 Biometra TAdvanced 384 384 well
384 well plates
846-x-070-214 Biometra TAdvanced 384 G 384 well
384 well plates
846-x-070-212 Biometra TAdvanced Twin 48 2 x 48-well block (0.2 ml)
846-x-070-202 Biometra TAdvanced Twin 48 G 2 x 48-well block (0.2 ml)
and gradient function
846-x-070-213 Biometra TAdvanced Twin 30 2 x 30-well block (0.5 ml)
846-x-070-215 Biometra TAdvanced Twin combi 2 x 48-well (0.2 ml) and
2 x 18-well (0.5 ml) block

G = Gradient
x = 2 for 230 V, 4 for 115 V, 5 for 100 V

Block modules and base unit
Order number Description Capacity
846-070-231 Biometra TAdvanced Block Module 96 96 well
0.2 ml tubes, plates, strips
846-070-221 Biometra TAdvanced Block Module 96 G 96 well
0.2 ml tubes, plates, strips
846-070-271 Biometra TAdvanced Block Module 96 S 96 well
0.2 ml tubes, plates, strips
846-070-261 Biometra TAdvanced Blockmodul 96 SG 96 well
0.2 ml tubes, plates, strips
846-070-230 Biometra TAdvanced Block Module 60 60 well
0.5 ml tubes
846-070-220 Biometra TAdvanced Block Module 60 G 60 well
0.5 ml tubes
846-070-234 Biometra TAdvanced Block Module 384 384 well plates
846-070-224 Biometra TAdvanced Block Module 384 G 384 well plates
846-070-232 Biometra TAdvanced Twin Block Module 48 2 x 48-well block (0.2 ml)
846-070-222 Biometra TAdvanced Twin Block Module 48 G 2 x 48-well block (0.2 ml)
and gradient function
846-070-233 Biometra TAdvanced Twin Block Module 30 2 x 30-well block (0.5 ml)
846-070-235 Biometra TAdvanced Twin Block Module combi 2 x 48-well (0.2 ml) and
2 x 18-well (0.5 ml) block

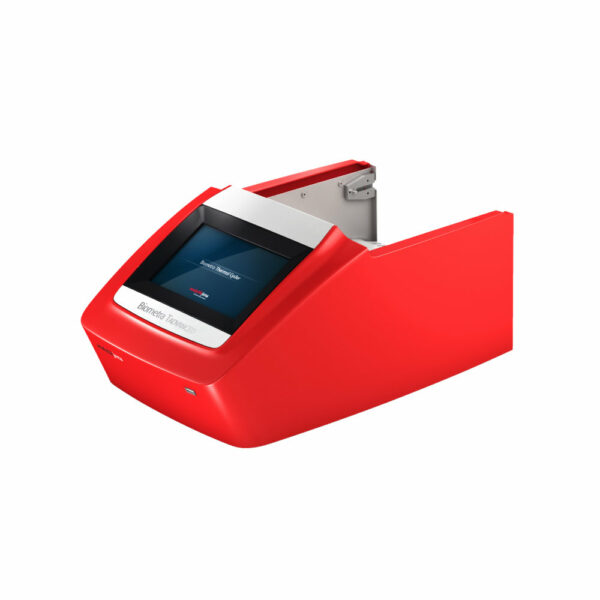

846-x-070-280 Biometra TAdvanced Base Unit
