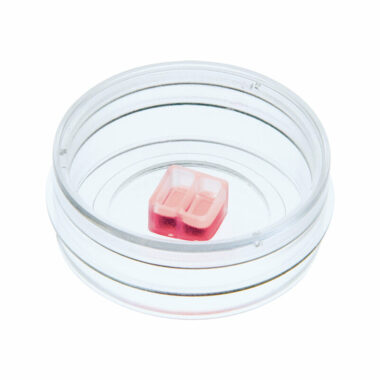

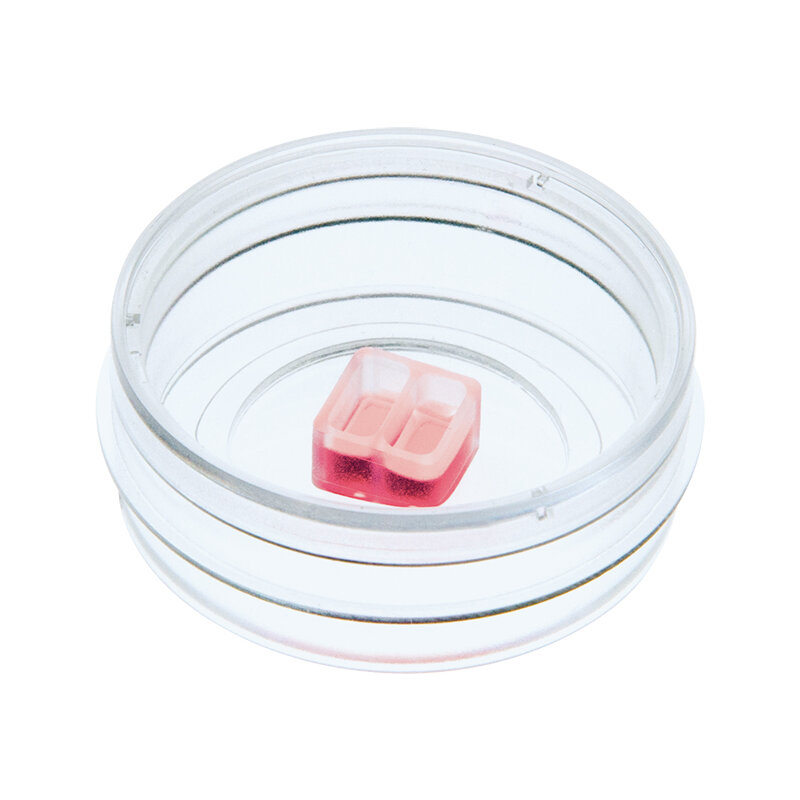

Culture-Insert 2 Well in µ-Dish 35 mm

SKU: IB-81176 UNSPSC: 41122107 Manufacturer Part No: 81176 Pack Size: 30
  • Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
  • Reproducible experiments owing to: a defined 500 µm cell free gap, no leakage during cultivation, and no material being left behind after the insert’s removal
  • Individual inserts for single experiments
  • Ideal cell growth on ibiTreat surface
Special Requirements?

Build out your order then request a quote from your cart.

Clear
See Variant info VAT
Ex. Inc.

2 well silicone insert with a defined cell-free gap, suitable for wound healing, migration assays, 2D invasion assays, and co-cultivation of cells

  • Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
  • Reproducible experiments owing to: a defined 500 µm cell free gap, no leakage during cultivation, and no material being left behind after the insert’s removal
  • Individual inserts for single experiments
  • Ideal cell growth on ibiTreat surface

Applications

  • Wound healing assays
  • Migration assays
  • 2D invasion assays
  • Co-cultivation of cells

Technical Features

  • Culture-Insert 2 Well, pre-inserted into the µ-Dish 35 mm, high or µ-Dish 35 mm, low
  • Biocompatible silicone material with adhesive underside
  • Ready-to-use: the Culture-Insert is already placed in the µ-Dish 35 mm, high or µ-Dish 35 mm, low
  • Clean surface after insert removal without remaining material
  • Find full specifications and technical details here: µ-Dish 35 mm, high | µ-Dish 35 mm, low

Specifications Table

Number of wells2
Outer dimensions8.4 x 8.4 x 5 mm (w x l x h)
Volume per well70 µl
Growth area per well0.22 cm²
Coating area per well0.82 cm²
Width of cell free gap500 µm +/- 100 µm
MaterialBiocompatible silicone
BottomNo bottom – sticky underside
Number of wells2
Outer dimensions8.4 x 8.4 x 5 mm (w x l x h)
Volume per well70 µl
Growth area per well0.22 cm²
Coating area per well0.82 cm²
Width of cell free gap500 µm +/- 100 µm
MaterialBiocompatible silicone
BottomNo bottom - sticky underside
Variant
Pack/Size
Ordering
Price
Qty
8XXXX_CI_2Well_RGB
Culture-Insert 2 Well in µ-Dish 35mm, high ibiTreat: ready to use, tissue culture treated, sterilized
30 / Pack

SKU: IB-81176

Manufacturer Part No: 81176

UNSPSC Code: 41122107

Price: £193.00 ex. VAT
8XXXX_CI_2Well_RGB
Culture-Insert 2 Well in µ-Dish 35mm, low ibiTreat: ready to use, tissue culture treated, sterilized
30 / Pack

SKU: IB-80206

Manufacturer Part No: 80206

UNSPSC Code: 41122107

Price: £193.00 ex. VAT
