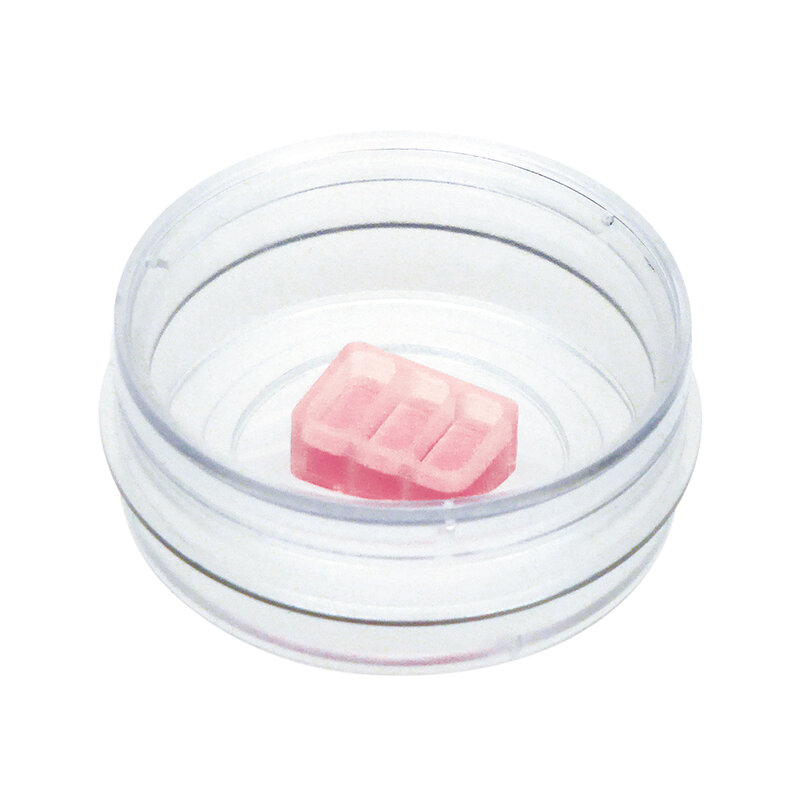

Culture-Insert 3 Well in µ-Dish 35 mm, high

SKU: IB-80366 UNSPSC: 41122600 Manufacturer Part No: 80366 Pack Size: 30
  • Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
  • Reproducible experiments owing to: two defined 500 µm cell free gaps, no leakage during cultivation, and no material being left behind after the insert’s removal
  • Suitable for 3 experiments in parallel
  • Individual inserts for single experiments
  • Ideal cell growth on ibiTreat surface
Special Requirements?

Build out your order then request a quote from your cart.

Bulk Discounts Available

Price: £393.54 ex. VAT

VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

3 well silicone insert with two defined cell-free gaps, suitable for wound healing, migration assays, 2D invasion assays, and co-cultivation of cells

  • Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
  • Reproducible experiments owing to: two defined 500 µm cell free gaps, no leakage during cultivation, and no material being left behind after the insert’s removal
  • Suitable for 3 experiments in parallel
  • Individual inserts for single experiments
  • Ideal cell growth on ibiTreat surface

Applications

  • Wound healing assays
  • Migration assays
  • 2D invasion assays
  • Co-cultivation of cells

Technical Features

  • Culture-Insert 3 Well, pre-inserted into the µ-Dish 35 mm, high
  • Biocompatible silicone material with adhesive underside
  • Ready-to-use: the Culture-Insert is already placed in the µ-Dish 35 mm, high
  • Clean surface after insert removal without remaining material
  • Find full specifications and technical details of the µ-Dish here

Specifications Table

Number of wells 3
Outer dimensions 8.4 x 12.15 x 5 mm (w x l x h)
Volume per well 70 µl
Growth area per well 0.22 cm²
Coating area per well 0.82 cm²
Width of cell free gap 500 µm +/- 100 µm
Material Biocompatible silicone
Bottom No bottom – sticky underside
Number of wells3
Outer dimensions8.4 x 12.15 x 5 mm (w x l x h)
Volume per well70 µl
Growth area per well0.22 cm²
Coating area per well0.82 cm²
Width of cell free gap500 µm +/- 100 µm
MaterialBiocompatible silicone
BottomNo bottom - sticky underside
Variant
Pack/Size
Ordering
Price
Qty
8XXXX_CI_3Well_RGB
Culture-Insert 3 Well in µ-Dish 35mm, high ibiTreat: ready to use, tissue culture treated, sterilized
30 / Pack

SKU: IB-80366

Manufacturer Part No: 80366

UNSPSC Code: 41122600

Price: £393.54 ex. VAT
