EzScope 101 with 10x and 20x objective lens

SKU: BRB-BRLC-0101-20X UNSPSC: 41111712 Manufacturer Part No: BRLC-0101-20X Pack Size: 1
  • Live preview for up to 4 units of EzScope
  • Capture single image or time-lapse series
  • Flatfielding correction for even brightfield background
  • Time-lapse video output
  • Spatial calibration
  • Measurements and convergence analysis
Special Requirements?

Build out your order then request a quote from your cart.

Price: £5,156.00 ex. VAT Sale: £4,865.00 ex. VAT

VAT
Ex. Inc.

EzScope 101 is a dedicated live cell imaging system that helps to streamline your research workflow with improved efficiency and productivity, no more hassle to remove cells from the incubator for observation. EzScope 101 brings 24/7 measurements under precisely controlled conditions in a non-perturbing environment. You can observe the images anytime with walk-away convenience. Up to four samples can be monitoring simultaneously in a same incubator.

Incubator Live View

Designed to be used inside the incubator, without the need to remove your cells from incubator to enhance culture quality control.

Minimizes Experimental Variations

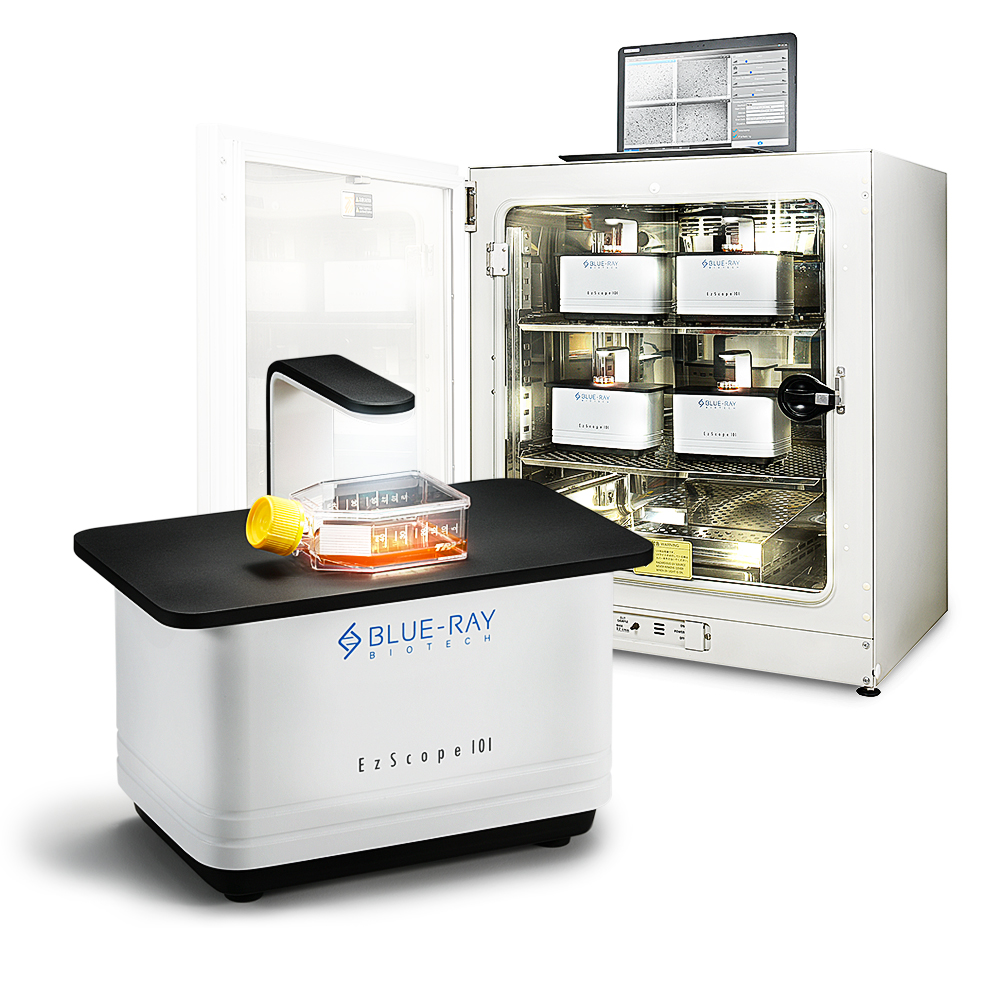

Up to four units of EzScope can to be setup in the same incubator and controlled by one computer. This enables the monitoring of samples simultaneously, reduces errors caused by environment variations.

Exceptional Image Quality

Adopts high contract brightfield optical configuration, coupled with precise motorized focusing, and two interchangeable magnifying objective lenses.

Remote Monitoring of Experiment

Allows flexible remote monitoring the assay via Windows-based remote desktop software.

Easy Image Editor

Captures and edits images easily with EzCapture software

SKUBRLC-0101
Generic NameEzScope 101 with 10x objective lens
OpticsBrightfield (transmitted) with white LED
Objective Lens10x, 20x (optional)
Camera1.3 MP CMOS Sensor
Image Resolution1280 x 1024 pixels
Export FormatsTiff (image), AVI (video)
SoftwareEzCapture with snapshot, time-lapse, and confluence, etc.
Field of View2.6 x 2.0 mm (10x objective)
Resolution2 μm/pixel
Live View Frame RateUp to 8 frames/second
FocusingMotorized
Manual XY Stage (optional)SBS footprint
Labware Holders (optional)35 mm culture dish and slide, 60 mm culture dish and slide, T-25 culture flask, T-75 culture flask
Computer Requirementsi3 CPU with 4 GB RAM, Windows 10 OS, i5 CPU with 8GB RAM for multiple unit connection
ConnectivityUSB 2.0/3.0, up to 4 units
Power AdaptorInput: AC 100-240V, 50/60Hz, Output: DC 5V, 2A
Dimensions (W x D x H)225 x 131 x 205 mm
Weight2.0 kg
Operating Temperature0°C - 42°C
Operatuing Humidity5% - 95% RH non-condensing
CertificationsCE, RoHS
Product Flyers
Variant
Pack/Size
Ordering
Price
Qty
EzScope-1
EzScope 101 Inverted cell culture microscope with 10x and 20x objective lens
1 / Each

SKU: BRB-BRLC-0101-20X

Manufacturer Part No: BRLC-0101-20X

UNSPSC Code: 41111712

Price: £5,156.00 ex. VAT Sale: £4,865.00 ex. VAT
