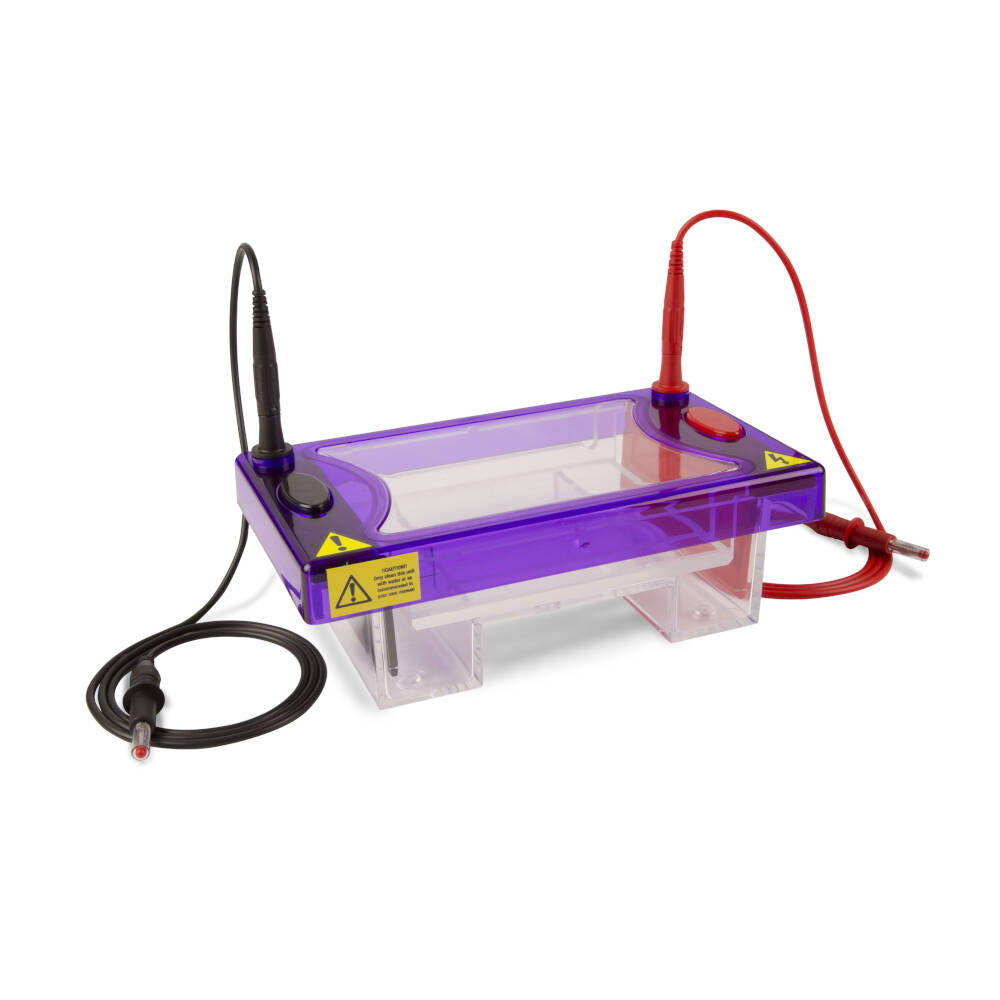

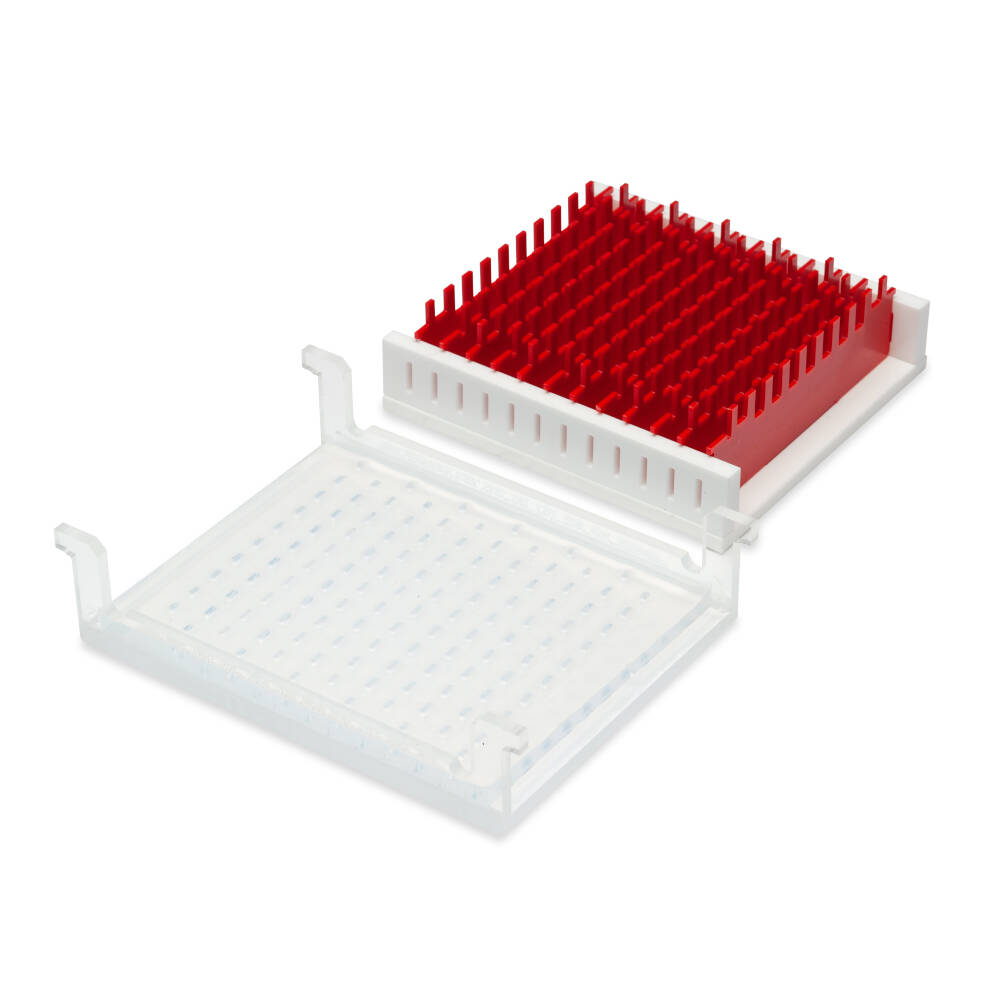

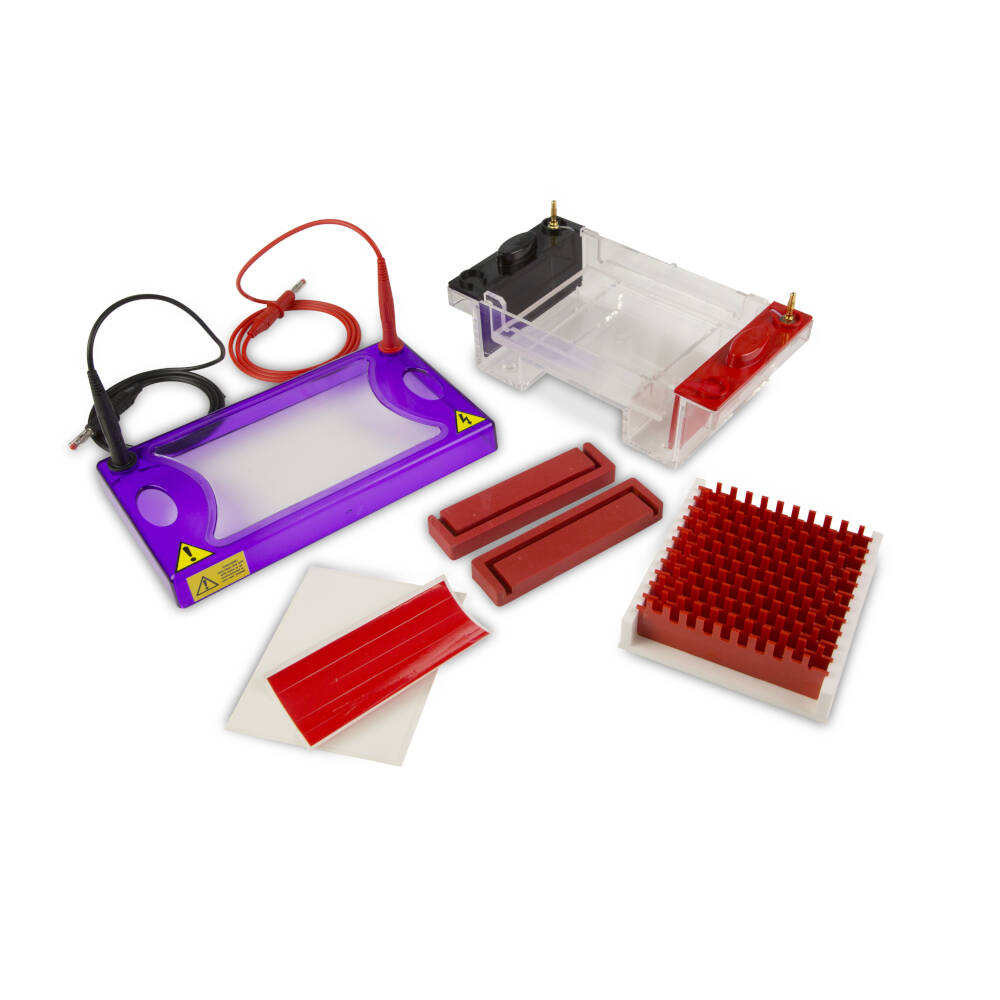

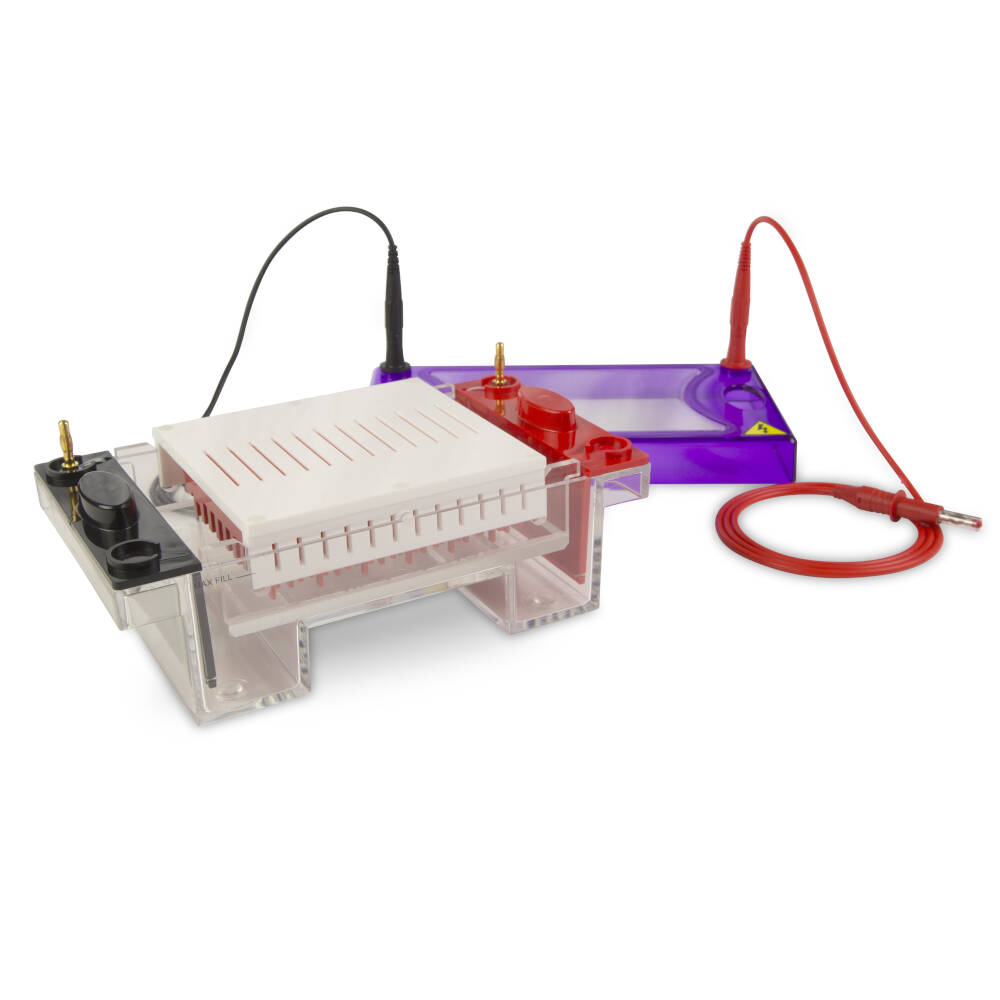

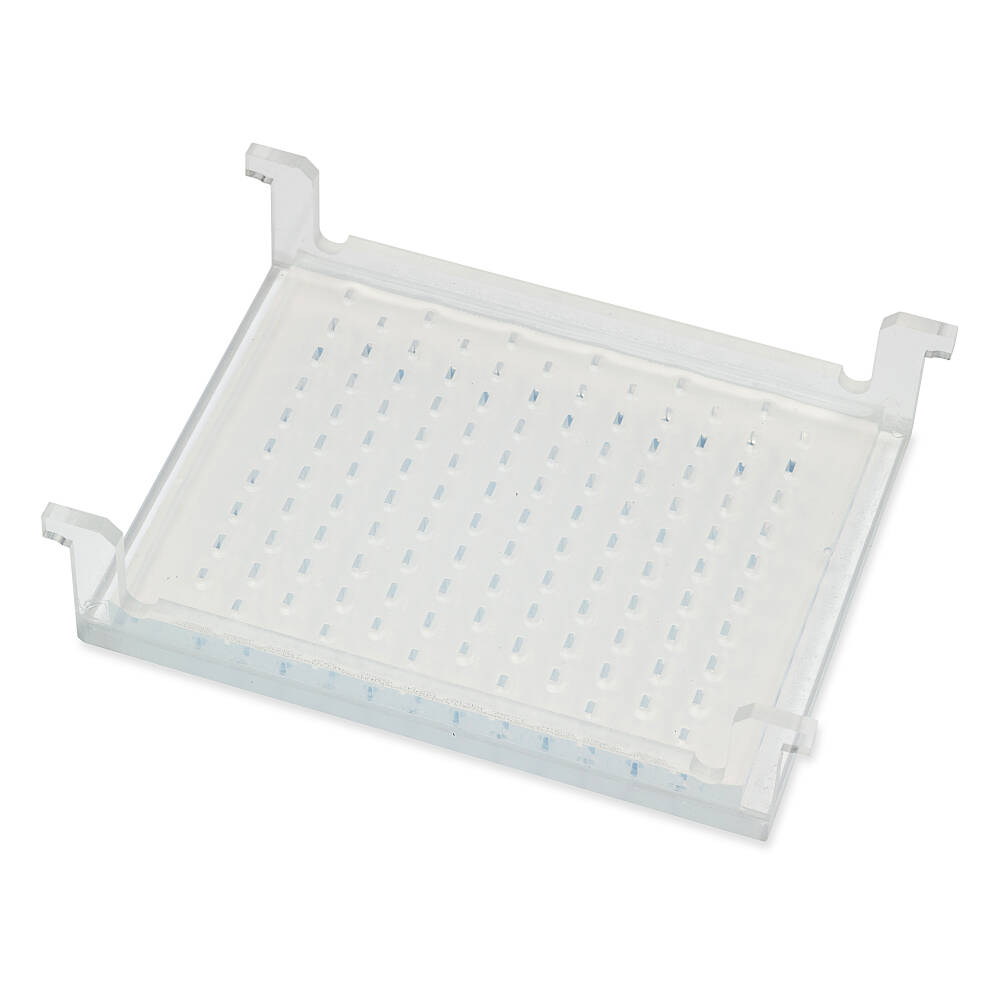

The MultiSUB Midi 96 Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands. Its 10x12cm (W x L) gel dimensions and 96-well comb block format correspond to the standard microplate configuration. Two different types of comb are available; one with 8 wells and one additional lane for DNA markers, and one with 8 wells and 2 additional lanes for markers. The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation.The MultiSUB Midi 96 can accommodate samples from a 96-well plate and samples can be loaded directly using 8-channel pipettes. As with all MultiSUB units, the leak-proof casting is simplified using the supplied casting dams, while their ultra-compact size minimises buffer usage and bench space requirements.MSMIDI96ST Stretch Systems are also available for those users requiring an extended run length per well of up to 3.6cm, or for loading of samples from two 96-well plates – MSMIDI96STDBL.
multiSUB MIDI96, 96 well electrophoresis system
- Designed for loading of DNA samples from multi-well plates
- Ideal for high throughput electrophoresis
- Average run-time is just 15 to 30 minutes
- Direct microplate format for easy lane identification
- Multichannel pipette compatible combs for speed loading
- Stretch versions available with extended 3.6cm separation distance to double capacity
Build out your order then request a quote from your cart.
Product succesfully added to cart. View CartIf you are looking for a quote, you can request this here.
|Unit Dimensions (cm)||12.5 x 22 x 9||12.5 x 22 x 9||12.5 x 22 x 9||12.5 x 22 x 9|
|Maximum Sample Capacity||96||96||96||96|
|Base Buffer Volume||300||300||300||300|
|Flexicaster Options||MS7/10-FC, MS15/20-FC, MS26-FC||MS7/10-FC, MS15/20-FC, MS26-FC||MS7/10-FC, MS15/20-FC, MS26-FC||MS7/10-FC, MS15/20-FC, MS26-FC|
|Typical Running Conditions||90V, 15-30 minutes||90V, 15-30 minutes||90V, 15-30 minutes||90V, 15-30 minutes|
|Bromophenol Blue Migration Rate||~4-5cm/hr at 90V||~4-5cm/hr at 90V||~4-5cm/hr at 90V||~4-5cm/hr at 90V|
|Gel Dimensions||10 x 12||10 x 12||10 x 12||10 x 12|
