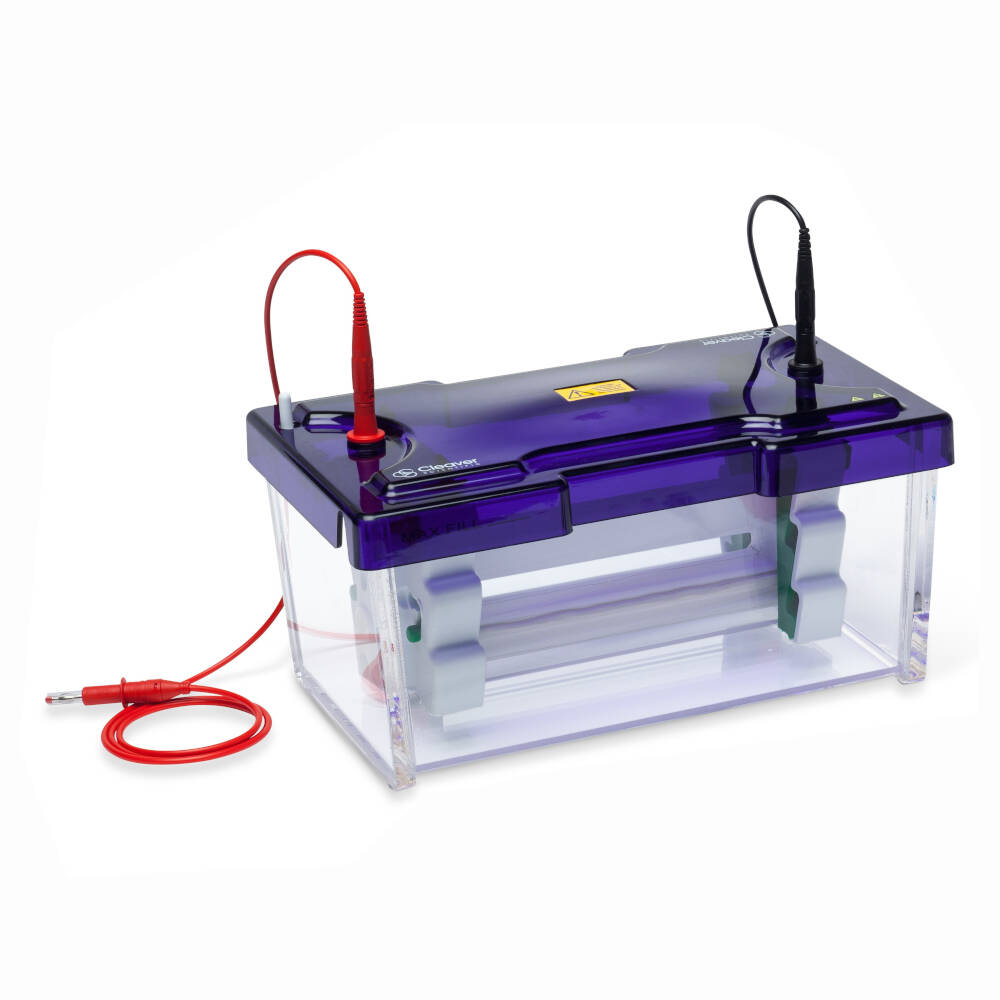

omniPAGE Mini Wide Vertical Protein Electrophoresis System

SKU: CLV-VS10WDSYS-CU UNSPSC: 41105340 Manufacturer Part No: VS10WDSYS-CU Pack Size: 1
  • Offers the capacity of two mini gels on a single gel
  • Rapid gel casting and loading
  • Optional low or high buffer volumes
  • Rapid set up cooling
Special Requirements?

Build out your order then request a quote from your cart.

Clear
See Variant info VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

The OmniPAGE Mini Wide vertical gel unit with an active gel width of 18cm effectively allows double the number of samples to be resolved as the OmniPAGE Mini unit. This allows consistency of sample comparison on a single gel and is designed for those with greater than 20 samples to compare and resolve.

Simple set up using ultra soft silicone seals guarantees trouble free glass plate loading and gel casting. Dual gaskets on the gel running insert along with notched and plain glass plates ensure leak proof gel running. Rapid set up cooling retains resolution in extended separations and also saves on buffer volume without affecting run quality.

4mm thick glass plates reduce breakage and have bonded spacers for added convenience. A wide range of accessories is available allowing many techniques to be performed using the same unit. Prep combs can be used to maximise sample loading and recovery. Accessory electroblotting and tube gel modules are available which use the same outer tank and lid.

Special reduced thickness clamps allow for running of thicker gels up to 2 mm, or for running of up to 4 gels per system using additional notched spacer plates.

SKUVS10WDVS10WDSYSVS10WDSYS-CU
Unit Dimensions (cm)26 x 16 x 1626 x 16 x 1626 x 16 x 16
Capacity1 - 4 gels1 - 4 gels1 - 4 gels
Maximum Sample Capacity192192192
Base Buffer Volume600600600
Gel Dimensions18 x 818 x 818 x 8
Maximum Buffer Volume (ml)280028002800
Includes Casting BaseFALSETRUETRUE
Blotting InsertVS10WBIVS10WBIVS10WBI
2D InsertVS10WDCIVS10WDCIVS10WDCI
Includes Additional CasterFALSEFALSETRUE
Plate Dimensions20 x 1020 x 1020 x 10
Instructions
Variant
Pack/Size
Ordering
Price
Qty
VS10W-3.WEB

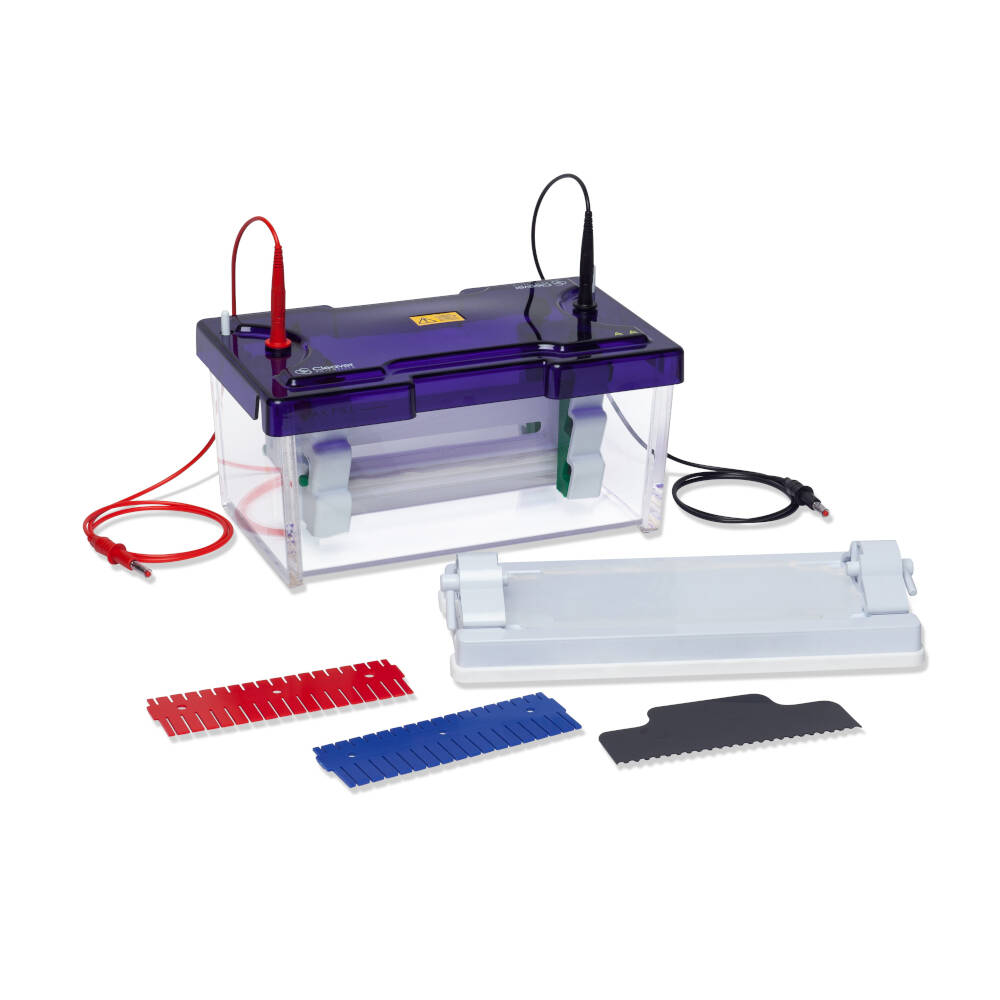

omniPAGE Mini Wide System with Caster and additional casting unit
1 / Each

SKU: CLV-VS10WDSYS-CU

Manufacturer Part No: VS10WDSYS-CU

UNSPSC Code: 41105340

Price: £751.09 ex. VAT
VS10W-3.WEB
omniPAGE Mini Wide System, No Caster
1 / Each

SKU: CLV-VS10WD

Manufacturer Part No: VS10WD

UNSPSC Code: 41105340

Price: £679.09 ex. VAT
VS10W-3.WEB
omniPAGE Mini Wide System with Caster
1 / Each

SKU: CLV-VS10WDSYS

Manufacturer Part No: VS10WDSYS

UNSPSC Code: 41105340

Price: £759.27 ex. VAT
