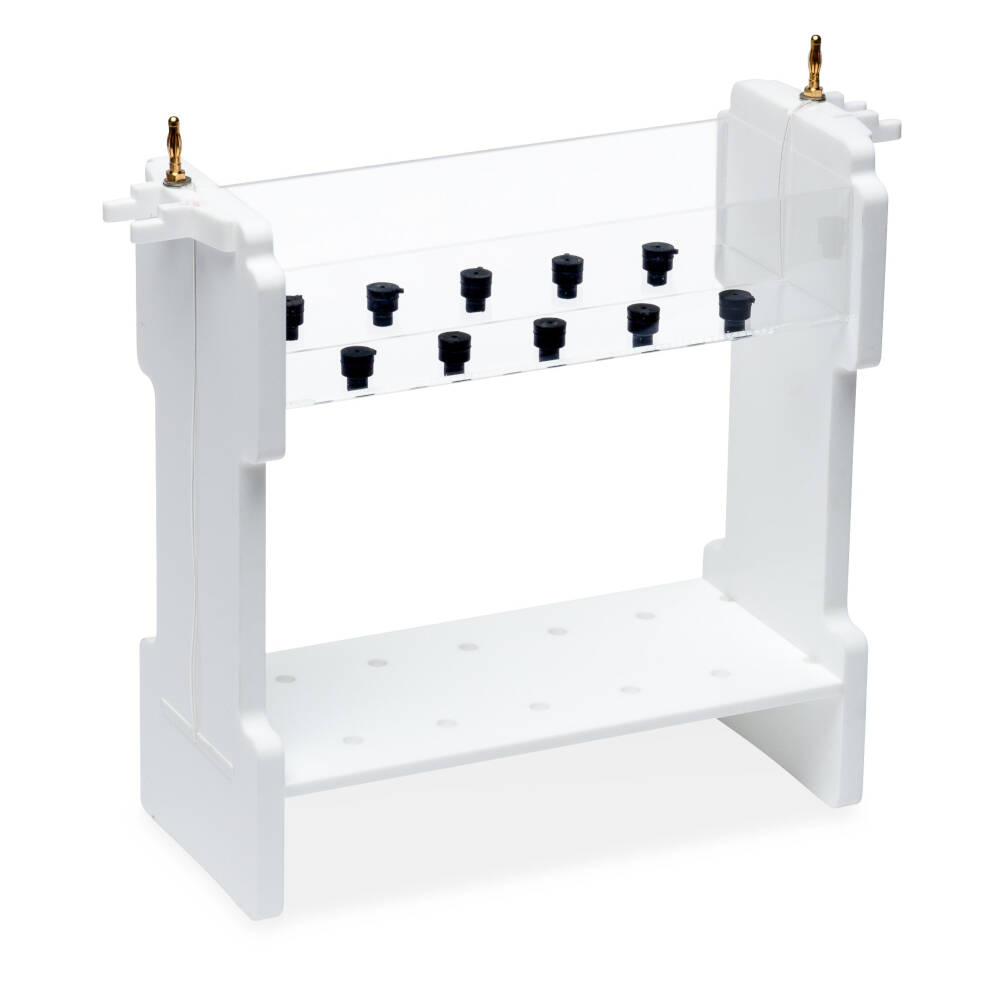

omniPAGE WAVE Maxi Tube Gel Insert

The VS20 WAVE 2-D tube gel system provides all necessary components for 2-D electrophoresis using capillary ampholyte tube gels:

• Interchangeable modular inserts run capillary tube gels for first-dimension IEF and vertical slab gels for second-dimension SDS-PAGE using the same universal tank and lid




• Detachable cooling coil, which connects to the laboratory water supply or a recirculating chiller, enables application of high voltages to achieve precise, high-resolution focusing for pI determination




• Focus up to 10 first-dimension IEF tube gels within a single run using the dedicated 2-D insert, or use included blanking ports to run fewer gels if preferred




• Run up to four 20x20cm second-dimension slab gels using specially adapted notched glass plates with bonded 2-D spacers to accommodate 18cm tube gels




• System may also be used for 18cm IPG strips resolved in the first-dimension on the CSL-IEF flat-bed IEF system




• Two 24-sample 1mm combs included for routine SDS-PAGE techniques

Package includes:

• WAVE Maxi Tube Gel insert




• Glass tubes




• Blanking ports




• IEF Conversion Kit for 18cm IPG strips and tube gels,


  includes: 1 set of plain glass plates with bonded spacers, 0.6x20cm (w x h); and 2x 2-D




  combs with one 3.5mm marker lane and one 18cm preparatory well
