Home Products General Laboratory Mixing & Stirring SpinVessel® SpinVessel® for 300ml Flat Bottom Vessel

SpinVessel® for 300ml Flat Bottom Vessel

SKU: VPS-VP418SV1-1-300FB UNSPSC: 41103801 Manufacturer Part No: VP 418SV1-1-300FB Pack Size: 1
Special Requirements?

Build out your order then request a quote from your cart.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

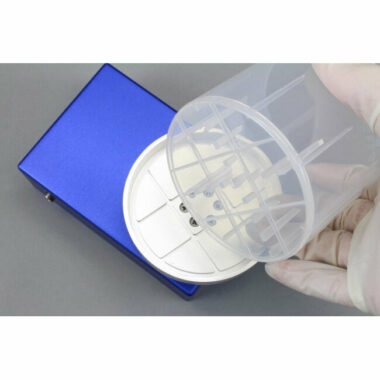

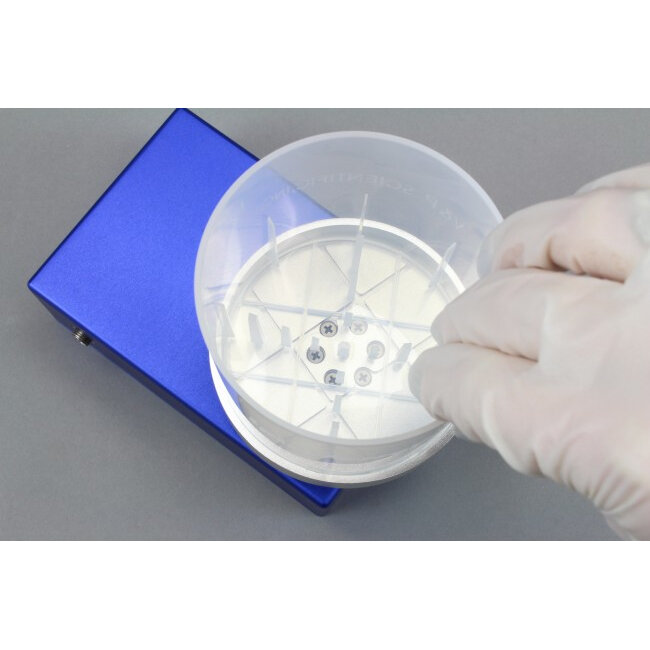

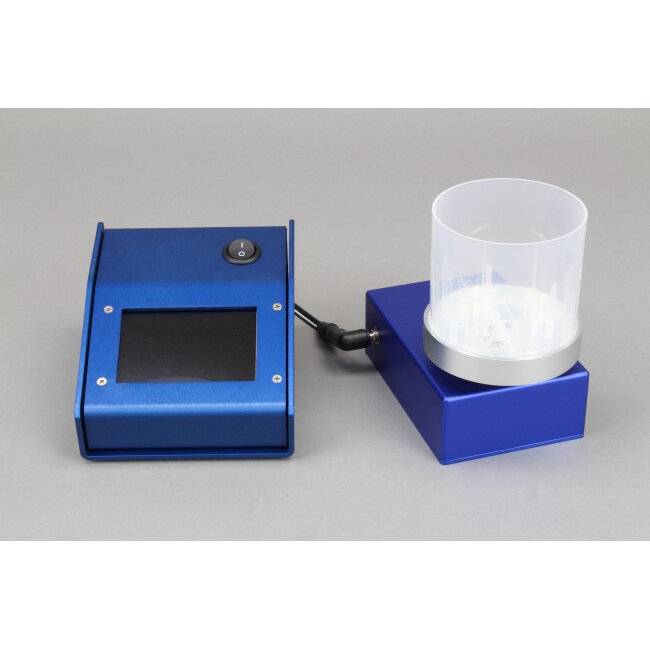

SpinVessel® System for 1 – 300ml flat bottom SpinVessel® tube with spin fins and projections, direct drive DC motor, made of anodized aluminum, digital touch screen controller, 100/240 Volts, 50-60 Hz, CE compliant

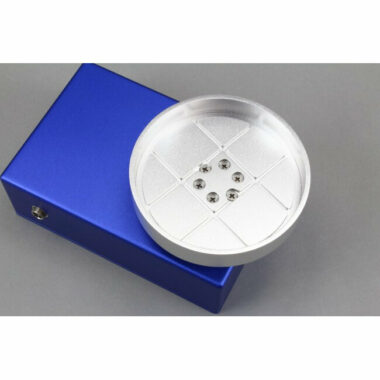

Motor unit fits into a microplate holder which makes it much easier to integrate onto a robotic liquid handler

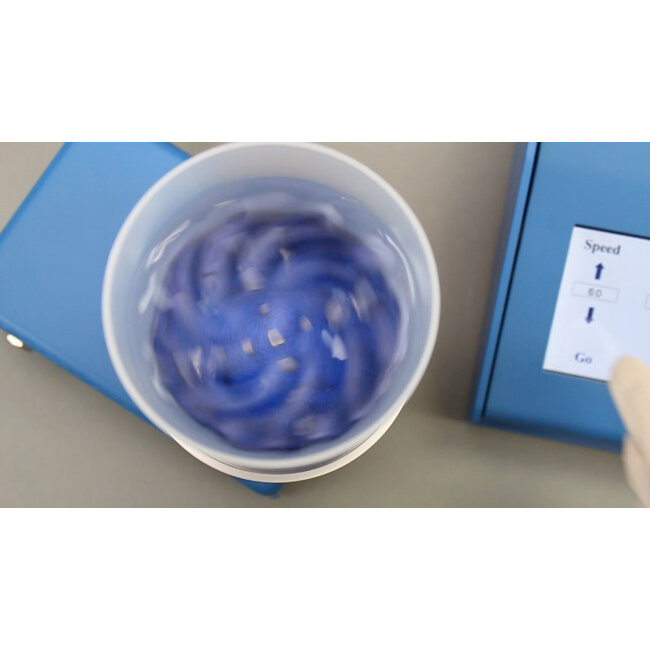

Our unique method of mixing and suspending particulates is predicated on fluid dynamics and flow geometry. Our method of mixing is achieved by integrating radially oriented side fins and projections in  a vessel and connecting the vessel to a machine that  alternately reverses the vessel’s spin direction to generate a circular pulsed radial fluid flow. The flow path starts at the bottom of the vessel, where the fluid and particulates are pushed to the side walls of the vessel. As the fluid and particle mixture strikes the side wall, the side fins guide the fluid flow up the vessel, thus generating lift along the vessel walls. The fluid flow loop is completed by the mixture flowing down the center of the vessel due to gravity and the nature of radial flow.

Motor Spec's Brushed DC
Control Type Touch Screen (Speed, Rotation & Reversal, Pause, Timer)
Power Supply - Output 12V, 5.5A
Container To Be Used SpinVessels
Compatible SpinVessels VP 830SV-300FB
SLAS Dimensions Yes.
Format 1
Tube & Device Height 136 mm
Materials - Attributes Anodized Aluminum
Variant
Pack/Size
Ordering
Price
Qty
CREATOR: gd-jpeg v1.0 (using IJG JPEG v62), quality = 90
SpinVessel® for 300ml Flat Bottom Vessel
1 / Each

SKU: VPS-VP418SV1-1-300FB

Manufacturer Part No: VP 418SV1-1-300FB

UNSPSC Code: 41103801

POA
