sticky-Slide VI 0.4

SKU: IB-80608 UNSPSC: 41122111 Manufacturer Part No: 80608 Pack Size: 15
  • Versatile – i.e., permits the mounting of a variety of bottom materials
  • Cost-effective experiments with small numbers of cells and low volumes of reagents
Special Requirements?

Build out your order then request a quote from your cart.

Price: £182.00 ex. VAT

VAT
Ex. Inc.

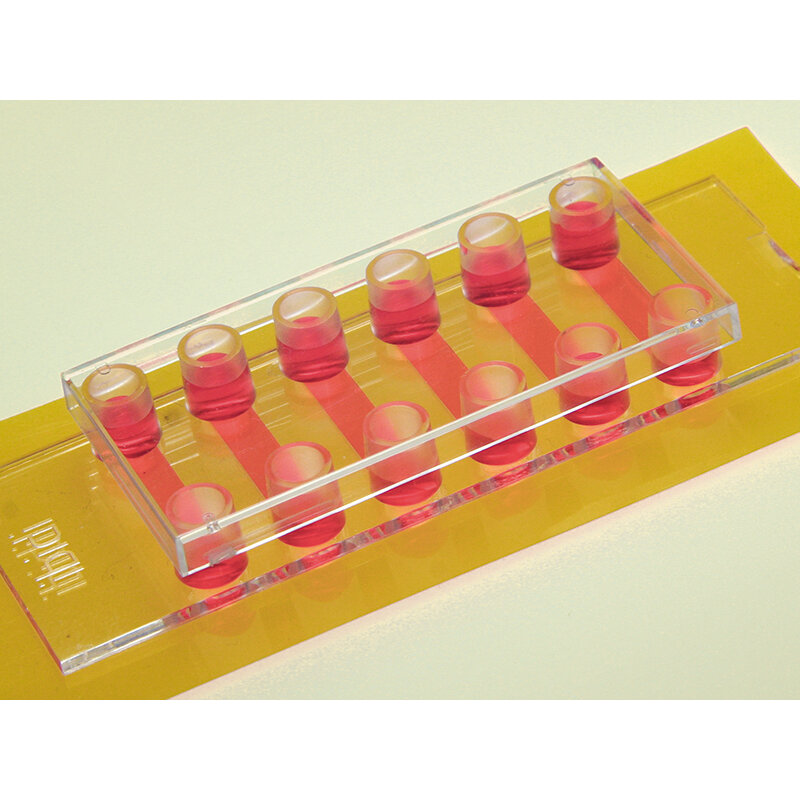

A bottomless 6 channel slide used for cell culture applications with a self-adhesive underside to which own substrates can be mounted

  • Versatile – i.e., permits the mounting of a variety of bottom materials
  • Cost-effective experiments with small numbers of cells and low volumes of reagents

Applications

  • Running multiple immunofluorescence assays and live cell imaging
  • Real-time imaging under either static or flow conditions
  • Inserting materials or tissue into perfusion channels
  • Running of shear stress experiments on any substrate
  • Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides

Technical Features

  • Bottomless slide
  • Self-adhesive underside
  • Biocompatible adhesive that has been cell culture tested
  • Adheres to all flat surfaces, even wet surfaces
  • Female Luer adapters for connection to tubing and pump systems
  • Sterile packaging
  • Suitable coverslips available
  • Specifications identical to those of the µ-Slide VI 0.4, except that it has no bottom

Specifications Table

Outer dimensions (w x l)25.5 x 75.5 mm²
AdaptersFemale Luer
Volume per reservoir60 µl
Number of channels6
Volume of each channel30 µl
Height of channels0.4 mm
Length of channels17 mm
Width of channels3.8 mm
Growth area per channel0.6 cm2
Bottomnone
Outer dimensions (w x l)25.5 x 75.5 mm²
AdaptersFemale Luer
Volume per reservoir60 µl
Number of channels6
Volume of each channel30 µl
Height of channels0.4 mm
Length of channels17 mm
Width of channels3.8 mm
Growth area per channel0.6 cm2
Bottomnone
Variant
Pack/Size
Ordering
Price
Qty
8060X_sticky_SlideVI04_ia_RGB
sticky-Slide VI 0.4: sterilized
15 / Pack

SKU: IB-80608

Manufacturer Part No: 80608

UNSPSC Code: 41122111

Price: £182.00 ex. VAT
