µ-Slide Spheroid Perfusion

SKU: IB-80350 UNSPSC: 41122111 Manufacturer Part No: Array Pack Size: 15
  • Ideal for the long-term cultivation and perfusion of 3D spheroids or organoids
  • Flexible preparation for perfusion: spheroids can be transferred or created directly in the wells
  • Imaging chamber with excellent optical quality for high-resolution microscopy
Special Requirements?

Build out your order then request a quote from your cart.

Bulk Discounts Available
Clear
See Variant info VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

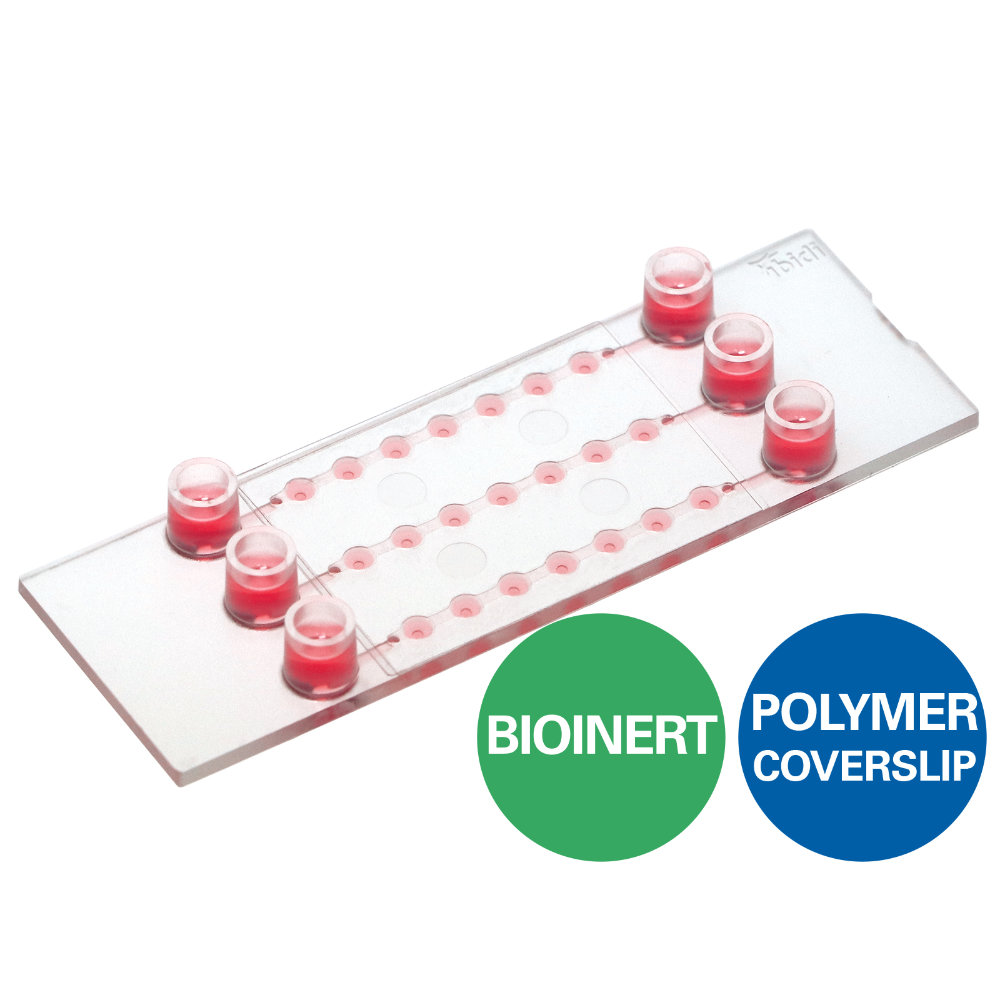

A perfusable channel µ-Slide with 3 x 7 wells for long-term spheroid cultivation and high-end microscopy

  • Ideal for the long-term cultivation and perfusion of 3D spheroids or organoids
  • Flexible preparation for perfusion: spheroids can be transferred or created directly in the wells
  • Imaging chamber with excellent optical quality for high-resolution microscopy

Applications

  • Cultivation and high-resolution microscopy of three-dimensional cell aggregates (e.g., spheroids and organoids)
  • For use with the ibidi Pump System or any other pump device with Luer connectors
  • Perfusion of spheroids for fresh medium supply during long-term cultivation and access to spheroid growth kinetics
  • Spheroid generation directly in the wells
  • Spheroid retrieval for downstream processing (e.g., immunofluorescence, histology, and biochemical assays)
  • Perfusion of cell monolayers (adherent cells), suspension cells, or co-cultures
  • Organ-on-a-chip setups with up- and downstream metabolization
  • Live cell imaging and microscopy of 3D cell aggregates
  • Immunofluorescence staining and high-resolution fluorescence microscopy of living and fixed cells and cell aggregate

Technical Features

  • Optimized well geometry for spheroid/organoid culture and microscopy
  • Analysis of up to 21 samples in one slide
  • Perfusion can be applied for optimal nutrient supply during the cultivation of 3D cell aggregates
  • Initial open well format allows for easy sample preparation—easily close the wells with a coverslip for the application of flow
  • Channels create a simple fluidic connection of the wells
  • Luer adapters enable easy pump connection (e.g., to the ibidi Pump System)
  • Available with three surfaces:
    • Bioinert for complete surface passivation and no cell adhesion
    • Uncoated for minimal cell adhesion and suspension cells
    • ibiTreat (tissue culture-treated) for optimal cell adhesion
  • Sample can be observed through the ibidi Polymer Coverslip bottom using high-resolution fluorescence microscopy
  • Compatible with staining and fixation solutions
  • Compatible with differential interference contrast (DIC) microscopy when used with a DIC lid
  • Made of fully biocompatible materials

Specifications Table

Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of channels 3
Number of wells 3 x 7
Volume per well 3.5 μl
Well height (bottom niche) 0.4 mm
Well height (total) 1.3 mm
Well diameter (bottom) 0.8 mm
Channel volume (total) 45 µl
Channel height 0.2 mm
Channel width 1.0 mm
Growth area per well 0.5 mm²
Coating area using 3.5 µl 9.7 mm²
Adapters Female Luer
Volume per reservoir 60 µl
Top cover: ibidi Polymer Coverslip
Bottom: ibidi Polymer Coverslip
Outer dimensions (w x l) 25.5 x 75.5 mm²
Number of channels 3
Number of wells 3 x 7
Volume per well 3.5 μl
Well height (bottom niche) 0.4 mm
Well height (total) 1.3 mm
Well diameter (bottom) 0.8 mm
Channel volume (total) 45 µl
Channel height 0.2 mm
Channel width 1.0 mm
Growth area per well 0.5 mm²
Coating area using 3.5 µl 9.7 mm²
Adapters Female Luer
Volume per reservoir 60 µl
Top cover: ibidi Polymer Coverslip
Bottom: ibidi Polymer Coverslip
Variant
Pack/Size
Ordering
Price
Qty
uslide-spheroid-1
µ-Slide Spheroid Perfusion Bioinert: #1.5 polymer coverslip, surface passivation with Bioinert, sterilized
15 / Pack

SKU: IB-80350

Manufacturer Part No: Array

UNSPSC Code: 41122111

Price: £382.00 ex. VAT
uslide-spheroid-1
µ-Slide Spheroid Perfusion Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
15 / Pack

SKU: IB-80351

Manufacturer Part No: 80351

UNSPSC Code: 41122111

Price: £290.00 ex. VAT
uslide-spheroid-1
µ-Slide Spheroid Perfusion ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack

SKU: IB-80356

Manufacturer Part No: 80356

UNSPSC Code: 41122111

Price: £290.00 ex. VAT
