µ-Slide VI 0.4 Bioinert

SKU: IB-80600 UNSPSC: 41122111 Manufacturer Part No: 80600 Pack Size: 15
  • Superior to the standard ultra-low attachment (ULA) surfaces—stable, biologically inert surface for long-term experiments without any cell or biomolecule adhesion
  • Excellent microscopic quality without any autofluorescence—100% surface passivation combined with the highest optical quality of the ibidi Polymer Coverslip
Special Requirements?

Build out your order then request a quote from your cart.

Bulk Discounts Available

Price: £321.30 ex. VAT

VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

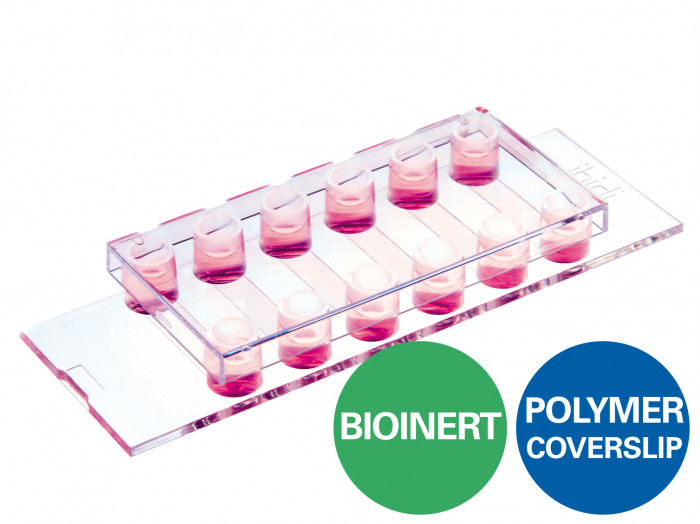

A 6 channel μ-Slide with a non-adherent surface for flow experiments and fluorescence microscopy

Applications:

  • Real-time imaging under either static or flow conditions
  • Generation and long-term culture of 3D cell aggregates (e.g., spheroids and organoids) without any scaffold
  • High resolution fluorescence microscopy of organoids, spheroids, embryoid bodies (EBs), and cells in suspension
  • Background-free analysis of cell-cell interactions
  • Prevention of stem cell differentiation due to attachment
  • Culture of suspension cells in a permanently unattached state
  • Self-assembly tumor spheroid formation assays
  • 3D tumor spheroid models

Technical Features:

  • Channel µ-Slide with 6 independent channels and a non-removable polymer coverslip-bottom
  • µ-Slide VI 0.4 with a non-adherent, passivated Bioinert surface
  • Bioinert surface with long term passivation—superior to standard ULA surfaces:
    • Ready-to-use without prior surface treatment or preparation
    • No adsorption, coating, or binding of proteins, antibodies, enzymes, and other biomolecules
    • Non-cytotoxic, biologically inert, and non-degradable
  • Easy connection to existing tubes and pumps via female Luer adapters
  • Imaging µ-Slide with excellent optical quality for high-end microscopy
  • Compatible with staining and fixation solutions
  • Biocompatible polymer material—no glue, no leaking
  • Also available with the ibidi Polymer Coverslip bottom with a tissue culture-treated surface: µ-Slide VI 0.4 ibiTreat for various experiments with adherent cells
  • Specifications

    Bioinert Surface

    Bioinert surface thickness 200 nm
    Bioinert surface material Polyol-based hydrogel
    Protein coatings Not possible

    µ-Slide VI 0.4

    Outer dimensions (w x l) 75.5 x 25.5 mm²
    Adapters Female Luer
    Number of channels 6
    Channel volume 30 µl
    Channel height 0.4 mm
    Channel length 17 mm
    Channel width 3.8 mm
    Volume per reservoir 60 µl
    Growth area 0.6 cm² per channel
    Coating area using 30 µl 1.2 cm² per channel
    Bottom: ibidi Polymer Coverslip with Bioinert surface

    Specifications

    Bioinert Surface

    Bioinert surface thickness 200 nm
    Bioinert surface material Polyol-based hydrogel
    Protein coatings Not possible

    µ-Slide VI 0.4

    Outer dimensions (w x l) 75.5 x 25.5 mm²
    Adapters Female Luer
    Number of channels 6
    Channel volume 30 µl
    Channel height 0.4 mm
    Channel length 17 mm
    Channel width 3.8 mm
    Volume per reservoir 60 µl
    Growth area 0.6 cm² per channel
    Coating area using 30 µl 1.2 cm² per channel
    Bottom: ibidi Polymer Coverslip with Bioinert surface
    Variant
    Pack/Size
    Ordering
    Price
    Qty
    slide-VI-04-high-bioinert
    µ-Slide VI 0.4 Bioinert: #1.5 polymer coverslip, surface passivation with Bioinert, Sterilized
    15 / Pack

    SKU: IB-80600

    Manufacturer Part No: 80600

    UNSPSC Code: 41122111

    Price: £321.30 ex. VAT
