Home All Products General Laboratory Products Magnetic Bead Separation Magnetic Plates for Microplates Magnetic Separation Plate for 96 Deep Well with Open Architecture Microplates, 24 Magnetic (52 MGO) Rectangles, Aluminum Frame, SLAS Footprint, No Registration Base
V P Scientific  Inc.

Magnetic Separation Plate for 96 Deep Well with Open Architecture Microplates, 24 Magnetic (52 MGO) Rectangles, Aluminum Frame, SLAS Footprint, No Registration Base

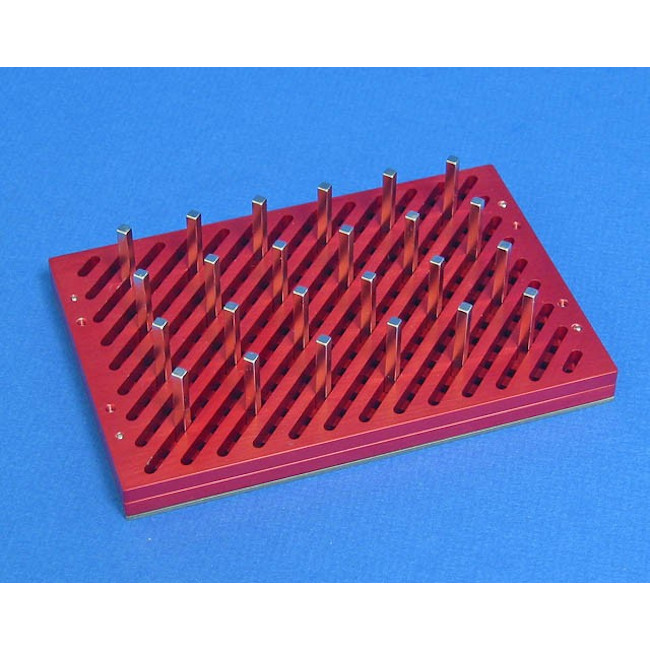

Magnetic Bead Separation Block for 96 deep well microplates, 24 tall square post magnets, horizontal magnetic pull, red anodized aluminum magnet frame, SBS footprint, no Registration Base. Each.

Purchasing Platforms

This item is available to order through the following:

Sorry, this product is currently Out of stock

Magnetic Bead Separation Block for 96 deep well microplates, 24 tall square post magnets, horizontal magnetic pull, red anodized aluminum magnet frame, SBS footprint, no Registration Base. Each.

Compatible Microplates*

Costar 0.5ml DW Cat (3956, 3957)

Nunc 1ml DW Cat (260251, 260252)

Polyfiltronics 1ml DW

Costar 1ml DW Cat (3958, 3959)

Greiner 1ml DW Cat (780201, 780261)

Matrix 1ml DW Cat (4211, 4212)

Eppendorf 1ml DW Cat (Deepwell 96/1000ul)

Ritter RiPlate 1ml DW

Nunc 2ml DW Cat (278743, 278752)

*Please note that this list is not comprehensive. The list consists of a limited amount of microplates that have been tested. It is possible that another plate not on this list is compatible. Please contact our sales team for more info.

Format 96
Container To Be Used Microplates
Well Bottom Shape V-Bottom
Plate Type Deep Well
Materials - Attributes Frame - Anodized Aluminum
Number of Magnets 24 Cylinders
MGO - Attribute 52
Magnet Type - Attribute Neodymium (NdFeB)
Includes Registration Base No.
SLAS Dimensions Yes.
Bead Pellet Location 1 Corner/Side
Magnetic Orientation Diametrically Magnetized
Robot Gripper Access No.
