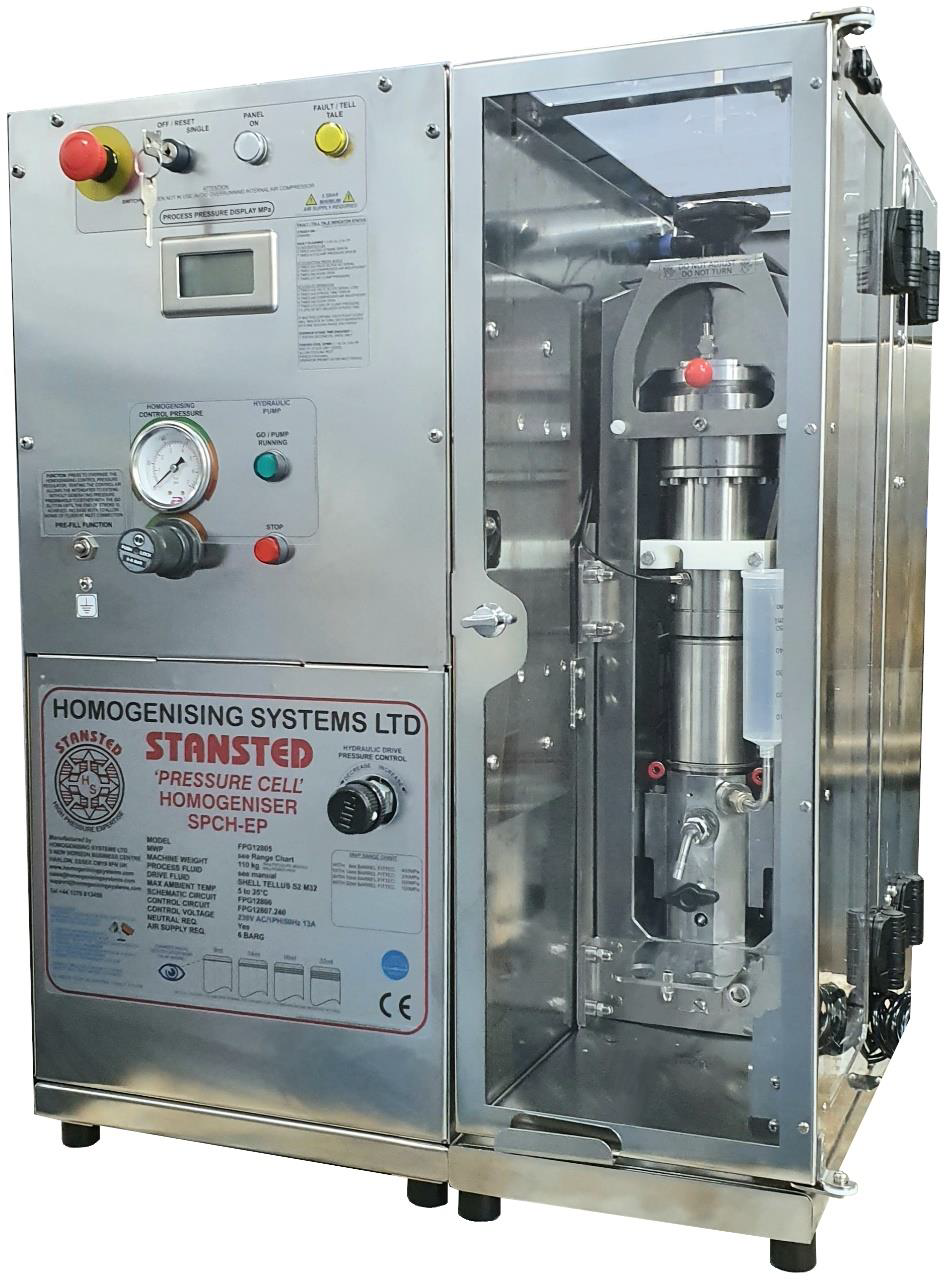

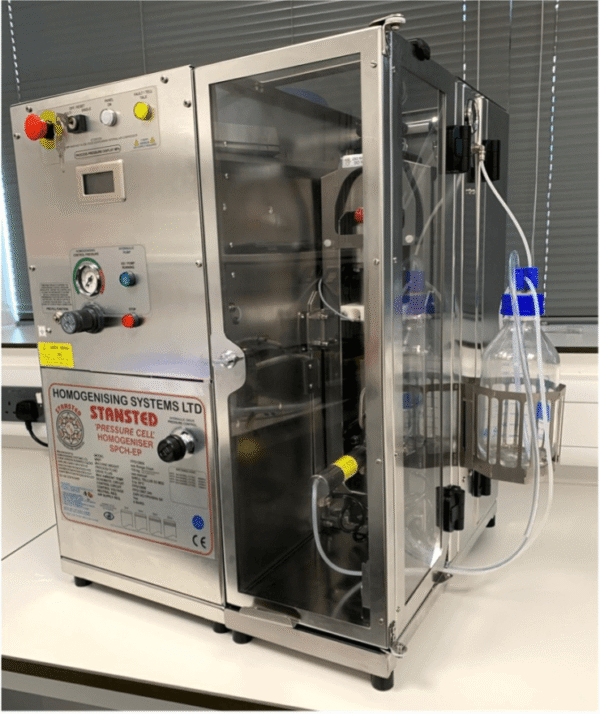

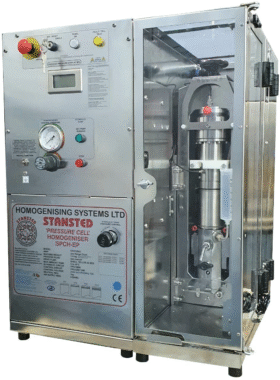

Stansted Laboratory High-Pressure Homogenizers
Modular systems for precision processing of small-volume samples
Stansted’s laboratory homogenizers are engineered for high-pressure applications requiring controlled, repeatable results across a range of scientific workflows. These systems support pressures up to 4200 bar (60,000 psi) and flow rates up to 275 ml/min, making them suitable for tasks such as cell disruption, nanoemulsion formation, and particle size reduction.
Technical Specifications
- Maximum Working Pressure (MWP): Configurable from 100 bar to 4200 bar
- Flow Rate: Up to 275 ml/min (nominal), adjustable for continuous or single-shot operation
- Processing Volumes: Interchangeable cells available in 1 ml, 5–9 ml, 16 ml, and 32 ml capacities
- Temperature Control: Optional modules for pre-heating and rapid post-process cooling
- Dimensions: Approx. 550 × 600 × 670 mm
- Weight: ~125 kg
- Compliance: CE-marked, compatible with CIP/SIP protocols
Application Scope
- Liposome and lipid nanoparticle preparation
- Cell lysis and protein extraction
- Nanoencapsulation and emulsion stabilization
- Polysaccharide and polymer dispersion
- General fluid homogenization
System Features
- Modular design allows rapid reconfiguration for different sample volumes
- Supports viscous and shear-sensitive formulations
- Stainless-steel construction for durability and chemical resistance
- Optional trolley-mounted units for mobile lab integration
- Designed for easy cleaning and sterilization in regulated environments
