µ-Slide 1 Well Glass Bottom
- An all-in-one cell culture chamber for cell culture and high-end imaging through the Glass Coverslip bottom
- Brilliant cell imaging thanks to the low thickness variability and highest optical quality of the Glass Coverslip bottom
- Maximal growth area for multiple applications: from culturing adherent cells to bioprinting
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.A chambered coverslip with 1 large well and a #1.5H glass coverslip bottom for TIRF and single molecule applications
Applications
- Cultivation and high-resolution microscopy of cells and tissues
- Flexible cell culture assays—from adherent cell culture to bioprinting
- TIRF and single molecule applications of living and fixed cells
- Super-resolution microscopy
- Immunofluorescence staining and fluorescence microscopy of living and fixed cells
- Live cell imaging over extended time periods
- Transfection assays
- Various microscopy techniques (e.g., widefield fluorescence, confocal microscopy, two-photon microscopy, FRAP, FRET, FLIM, and LSFM)
- Differential interference contrast (DIC) microscopy when used with a DIC lid
Technical Features
- Open µ-Slide with 1 large well and a non-removable Glass Coverslip bottom
- Bottom made from D 263 M Schott glass, No. 1.5H (170 +/- 5 µm)
- May require coating to promote cell attachment
- Imaging chamber slide with excellent optical quality for high-end microscopy
- Closely fitting lid for low evaporation
- Compatible with staining and fixation solutions
- Made of fully biocompatible materials
- Also available with an ibidi Polymer Coverslip Bottom for superior cell growth: µ-Slide 1 Well

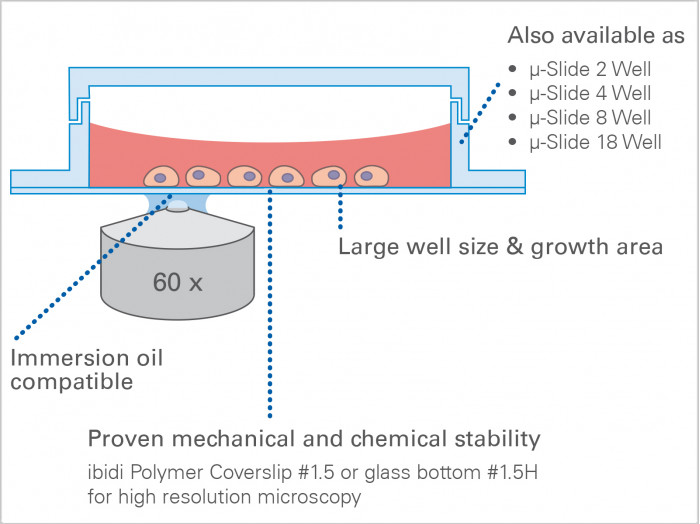

The Principle of the µ-Slide 1 Well
The Coverslip Bottom
The µ-Slide 1 Well Glass Bottom comes with a high precision D263 M Schott glass, No 1.5H (170 +/– 5 µm) Glass Coverslip bottom. This bottom is ideally suitable for high-resolution microscopy and special microscopic applications like TIRF or super-resolution.
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 1 |
| Dimensions of well (w x l x h) | 21.8 x 48.8 x 9.3 mm³ |
| Volume per well | 3 ml |
| Total height with/without lid | 10.8/9.5 mm |
| Growth area per well | 10.6 cm² |
| Coating area per well | 14.6 cm² |
| Bottom: Glass coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm | |
Instructions
Variant
Pack/Size
Price
Qty
µ-Slide 1 Well Glass Bottom: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, individually packed
15 / Pack
Price: £327.29 ex. VAT
µ-Slide 1 Well Glass Bottom, Bulk Pack 90: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, individually packed
90 / Pack
Price: £1,669.18 ex. VAT
µ-Slide 1 Well Glass Bottom, Bulk Pack 120: #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, 8 per tray, 15 trays
120 / Pack
Price: £2,094.66 ex. VAT
