14L CO2 Incubator

SKU: GSB-14G-230 UNSPSC: 41104403 Manufacturer Part No: 14G-230 Pack Size: 1
  • Seamless chamber, with rounded interior corners makes cleaning easy.
  • Sealed inner glass door allows chamber viewing.
  • CO2 range programmable from 0.2 to 20 %.
  • Temperature range programmable from 4 °C above ambient to 50 °C.
  • Large, easy to read LCD display with LED backlight.
  • Removable, seamless, stainless steel humidity reservoir.
  • 25mm access port for cable pass-through etc.
  • HEPA filtration for all incoming gasses.
  • Large range of options allows you to configure each incubator for each task.
  • 3 Year Warranty (extendable).
Special Requirements?

Build out your order then request a quote from your cart.

Price: £3,761.67 ex. VAT

VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

The range is designed around a scalable architecture and offers the following features as standard:

  • Optimum chamber environment, profiled heating creates gentle circulation – no fan or HEPA filter.
  • Seamless chamber, with rounded interior corners makes cleaning easy.
  • Removable shelves are non-tip.
  • Sealed inner glass door allows chamber viewing.
  • CO2 range programmable from 0.2 to 20 %.
  • Temperature range programmable from 4°C above ambient to 50°C.
  • Infrared CO2 Sensor, with auto self-referencing function.
  • Large, easy to read LCD display with LED backlight.
  • Removable, seamless, stainless steel humidity reservoir.
  • 25mm access port for cable pass-through etc.
  • HEPA filtration for all incoming gasses.
  • Large range of options allows you to configure each incubator for each task.
  • Optional data capture and reporting for QA and verification purposes.
  • 3 Year Warranty (extendable).

Control System Safety Features Include:

  • Independent over temperature cut-out.
  • Calibration and programmed data internally backed up to guard against loss.

Oxygen Control

An Oxygen control options are available: 1-19%

The control systems consist of nitrogen injection to accurately control the desired below ambient Oxygen level.

Range 4°C above ambient to 50°C Humidity Up to 95% @ 37°C
Control ± 0.1°C Solid Shelves 2 Shelves
Stability ± 0.1°C Dimensions 215(W) x 192(D)mm
Uniformity ± 0.3°C Chamber 238(W) x 201(D) x 298(H)mm
Range 0.2% - 20% External 336(W) x 322(D) x 481(H)mm
Control ± 0.1°C Crated 461(W) x 497(D) x 716(H)mm
Stability ± 0.1°C Unit Weight 22kg
Uniformity ± 0.2°C Crated Weight 38kg
Recovery Rate > 1.5% per minute Voltage 100/120V 50/60Hz
Connection 6mm tubing   220/240V 50/60Hz
Gas Pressure 0.35 BAR (5PSI) Power 700W
Tray Capacity 0.3 Litres Hold Energy < 0.1kWh @ 37°C
Variant
Pack/Size
Ordering
Price
Qty

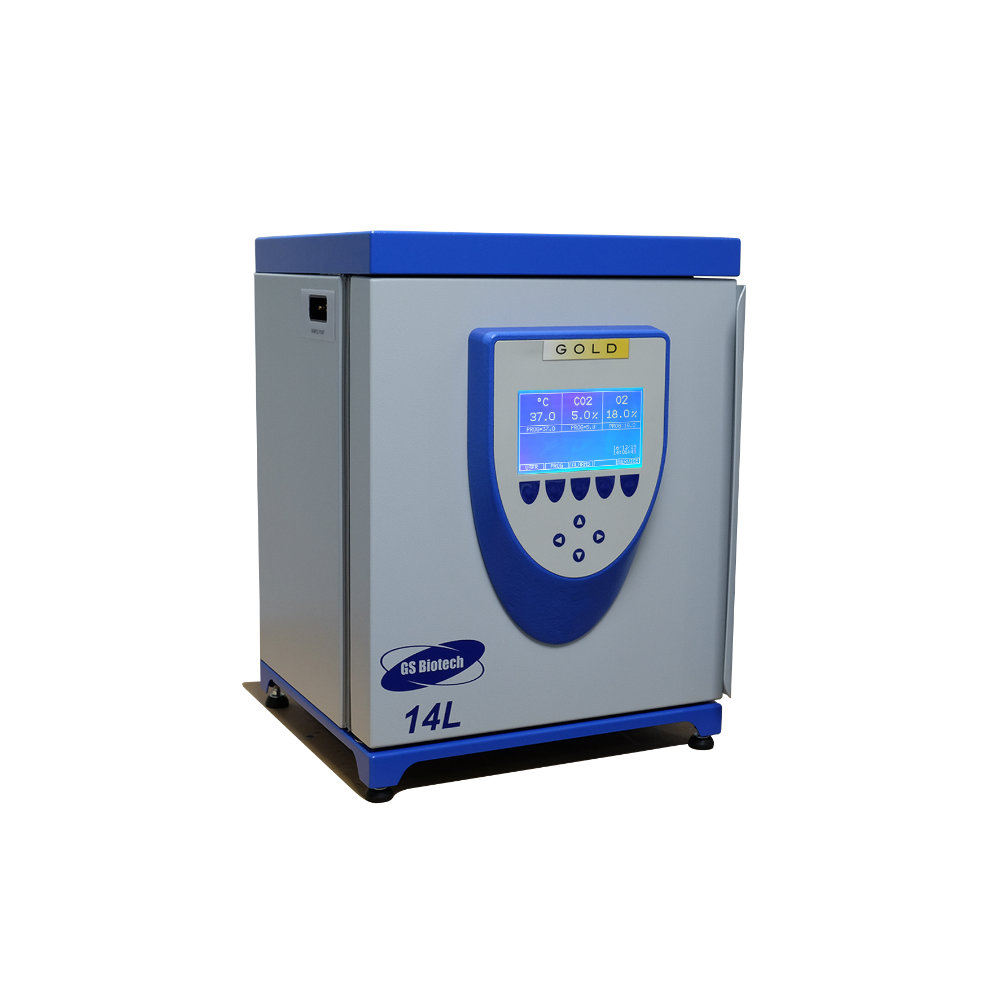

14L-Front-Left.WEB
14L CO2 Incubator with glass door, 25mm access port, data logging and RS232
1 / Each

SKU: GSB-14G-230

Manufacturer Part No: 14G-230

UNSPSC Code: 41104403

Price: £3,761.67 ex. VAT
