|Number of wells||3|
(w x l x h) in mm
|8.4 x 12.15 x 5|
|Volume per well||70 µl|
|Growth area per well||0.22 cm²|
|Coating area per well||0.82 cm²|
|Width of cell free gap||500 µm +/- 50 µm|
|Bottom||No bottom – sticky underside|

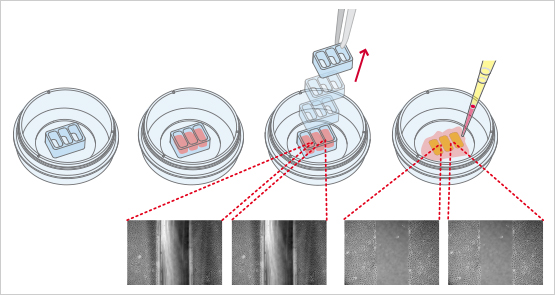

Principle for Wound Healing and Migration Assays
cell seeding and attachment
remove insert after cultivation
overlay patches with culture medium
Wound Healing / Migration
Wound healing and migration assays are done by seeding cells into the Culture-Insert 3 Well. After cell attachment, two cell-free gaps are created in which the cell migration can be visualized. Compared to the 2 well version, more cells can be analyzed and a higher throughput is achieved. Two cell-free gaps create a technical replicate in the very same plate or dish.
Two Conditions of Wound Healing / Migration
With the Culture-Insert 3 Well, a wound healing experiment and a control experiment can be done in the same well. The control cells can be pre-treated with any kind of treatment (e.g., drugs, plasmids, mRNA, or virus particles).
Co-Cultivation / Invasion
By seeding two different cell types, the invasiveness of adherent cells can be analyzed. Non-invasive cell types can be cultured next to each other, sharing the same medium. This co-culture allows the cells to communicate and share factors for differentiation studies or long-term culturing.
Invasion and co-cultivated cells can be imaged by high-resolution fluorescence microscopy.
Visualization of Cell Migration
Performing a Wound Healing Assay
Henrike Rebl, University Medicine, Rostock, Germany
“I have tested the Culture-Insert 2 Well and 3 Well and they worked quite nicely. I will definitely use the ibidi Culture-Inserts and µ-Dishes again because they are so easy to use and they work great for fluorescence microscopy.”
