SpinVessel® 300 ml Flat Bottom

SKU: VPS-VP830SV-300FB UNSPSC: 41103801 Manufacturer Part No: VP 830SV-300FB Pack Size: 1
Special Requirements?

Build out your order then request a quote from your cart.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

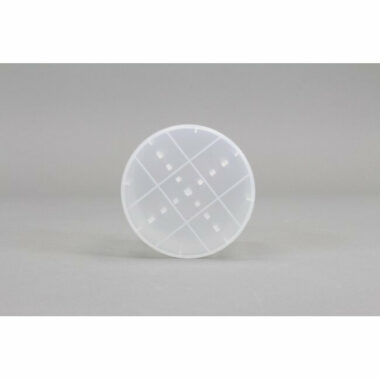

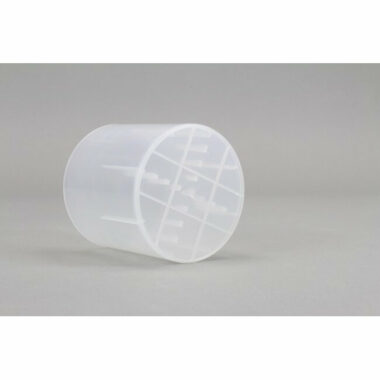

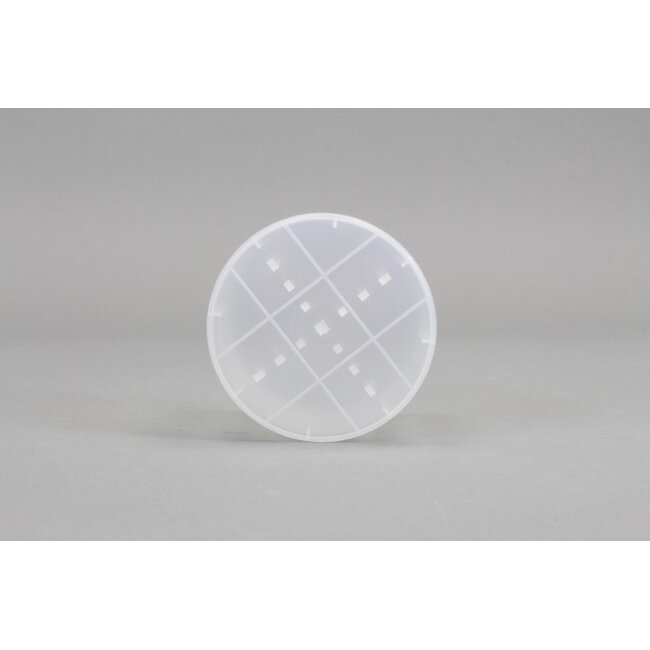

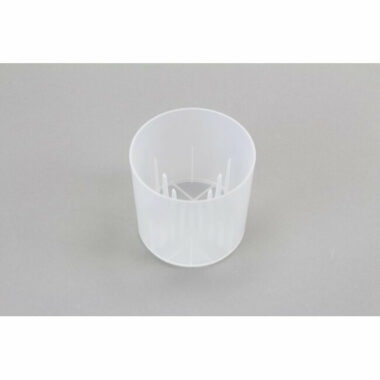

SpinVessel® 300 ml Flat Bottom, Sterile, RNase, DNase and DNA free, nonpyrogenic, made of virgin polypropylene, flat bottom with SpinVessel® Projections (patent pending), individually packaged and sealed, 10/pack

Our unique method of mixing and suspending particulates is predicated on fluid dynamics and flow geometry. Our method of mixing is achieved by integrating radially oriented side fins and projections in  a vessel and connecting the vessel to a machine that  alternately reverses the vessel’s spin direction to generate a circular pulsed radial fluid flow. The flow path starts at the bottom of the vessel, where the fluid and particulates are pushed to the side walls of the vessel. As the fluid and particle mixture strikes the side wall, the side fins guide the fluid flow up the vessel, thus generating lift along the vessel walls. The fluid flow loop is completed by the mixture flowing down the center of the vessel due to gravity and the nature of radial flow.

Compatible SpinVessel Devices

VP 418SV1-1-300FB

VP 418SV2-1-300FB-CC

Materials - Attributes Polypropylene
Working Volume 300 ml
Max Volume 370 ml
Sterile Yes, by Electron Beam Irradiation, RNase, DNase, DNA and Pyrogen Free
Disposable Yes
Dead-Volume 15 ml (volume needed to fully cover bottom of container and mix) May not represent true dead-volume for your application Dead-volume is determined by many factors such as: -Starting Volume -Aliquot Volume (total and per pipet) -# of Pipets -Required mixing speed to maintain suspension
Tube & Device Height 136 mm
CREATOR: gd-jpeg v1.0 (using IJG JPEG v62), quality = 90
SpinVessel® 300 ml Flat Bottom
1 / Each


Manufacturer Part No: VP 830SV-300FB

UNSPSC Code: 41103801
